Bell sintering Hydrogen Atmosphere Annealing Furnace For Ferrite Ceramic Substrates

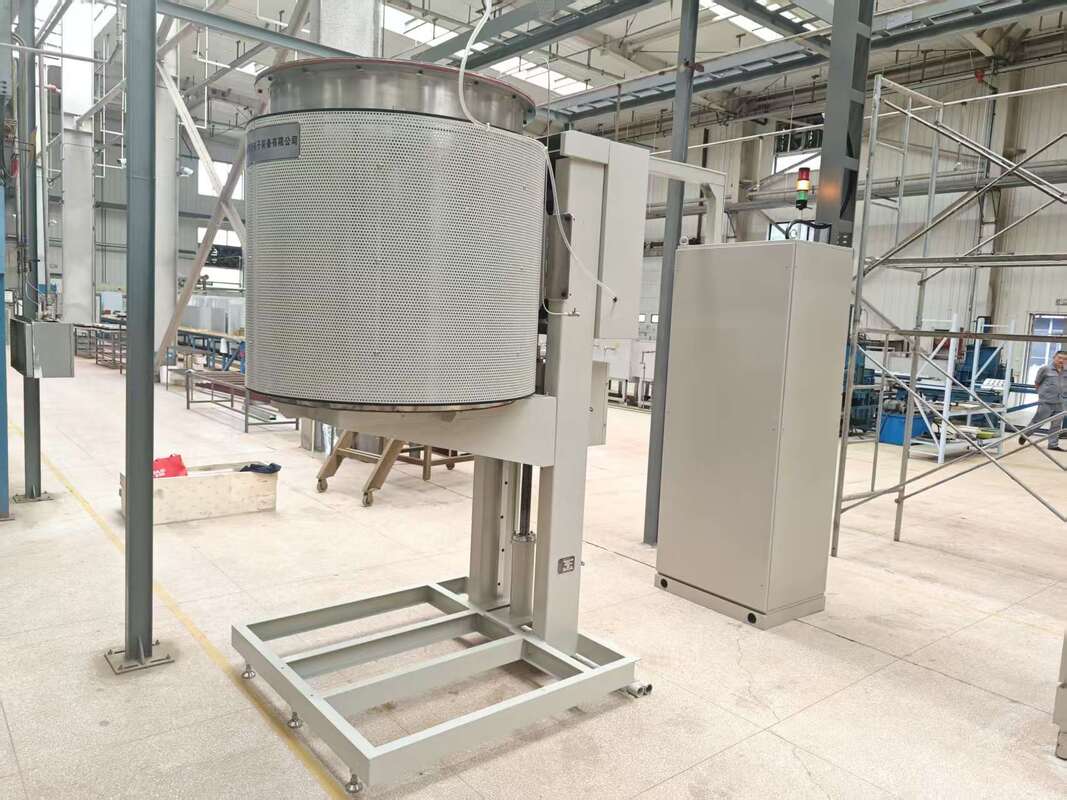

Tailord Round Bell Furnace for Debinding & Sintering of Ferrite Substrates

(Max. 1750°C, Air Atmosphere)

Precision High-Temperature Sintering for Superior Magnetic Properties and Geometric Integrity

The manufacturing of high-performance ferrite substrates for high-frequency applications demands an exceptional thermal process that achieves precise microstructural control without compromising dimensional stability. Tailord's Round Bell Furnace, capable of reaching 1750°C in an air atmosphere, is masterfully engineered for this critical task. It seamlessly integrates binder burnout and ultra-high-temperature sintering within its unique circular, uniform hot zone, ensuring the production of flat, dense, and magnetically consistent ferrite substrates essential for next-generation RF, power conversion, and EMI suppression components.

Key Features & Process Advantages:

1. Ultra-High Temperature Capability for Advanced Ferrites: Achieving a maximum temperature of 1750°C is essential for sintering high-density, high-permeability ferrite compositions (e.g., Ni-Zn, Mg-Zn). This extreme heat ensures optimal grain growth and cation ordering, which directly translates to superior initial permeability (μi), high quality factor (Q), and the precise saturation flux density (Bs) required for miniaturized, high-efficiency magnetic devices.

2. Unmatched Radial Temperature Uniformity for Perfect Flatness (±3°C): The symmetrical design of the round bell furnace creates a perfectly uniform radial thermal environment. This is critical for preventing warping, camber, and differential shrinkage in thin, plate-like ferrite substrates during sintering, guaranteeing exceptional geometric integrity and consistent magnetic performance across the entire batch.

3. Integrated Debinding & Sintering in a Single Sealed Cycle: The process conducts the complete thermal profile, from low-temperature polymer removal to the final high-temperature densification soak, within one continuous, protected cycle. This eliminates intermediate handling of fragile, porous "brown" ferrite substrates, drastically reducing the risk of micro-cracking, contamination, and breakage to maximize production yield.

4. Optimized Air Atmosphere for Stoichiometric Control: A controlled air atmosphere is ideal for sintering most commercial ferrite compositions. It ensures the complete oxidative removal of organic binders and, critically, maintains the precise oxygen stoichiometry within the spinel crystal structure, which is fundamental for achieving the designed magnetic properties and long-term stability.

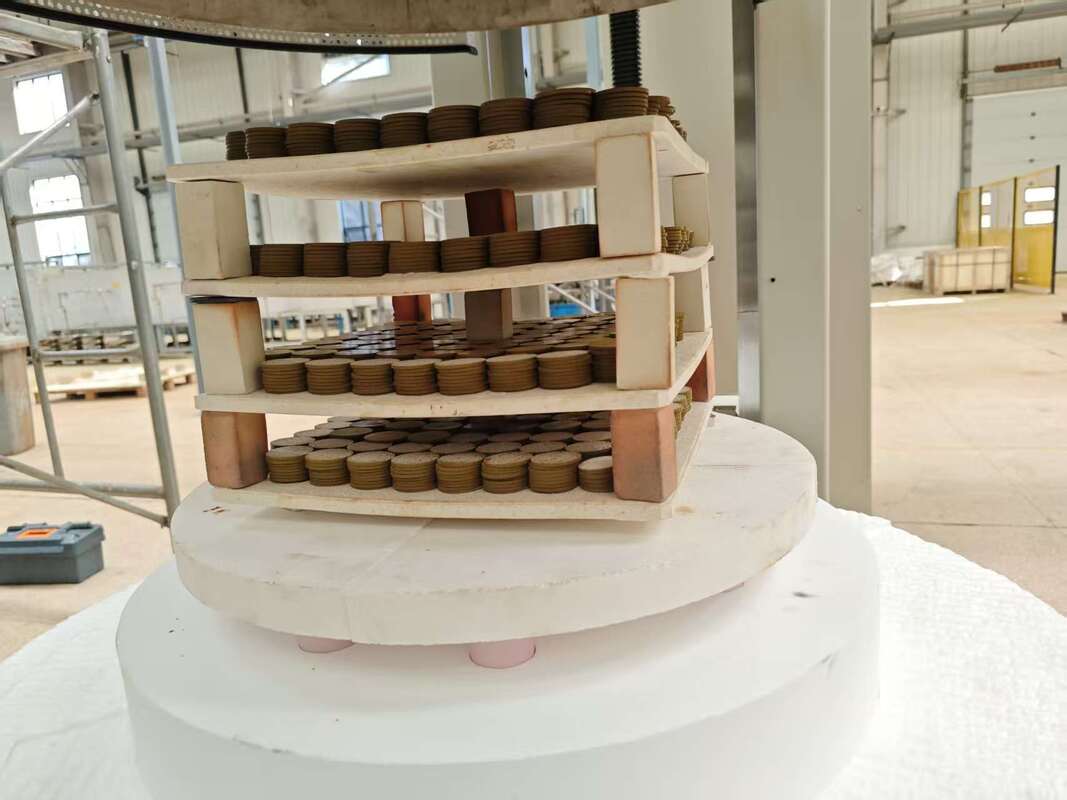

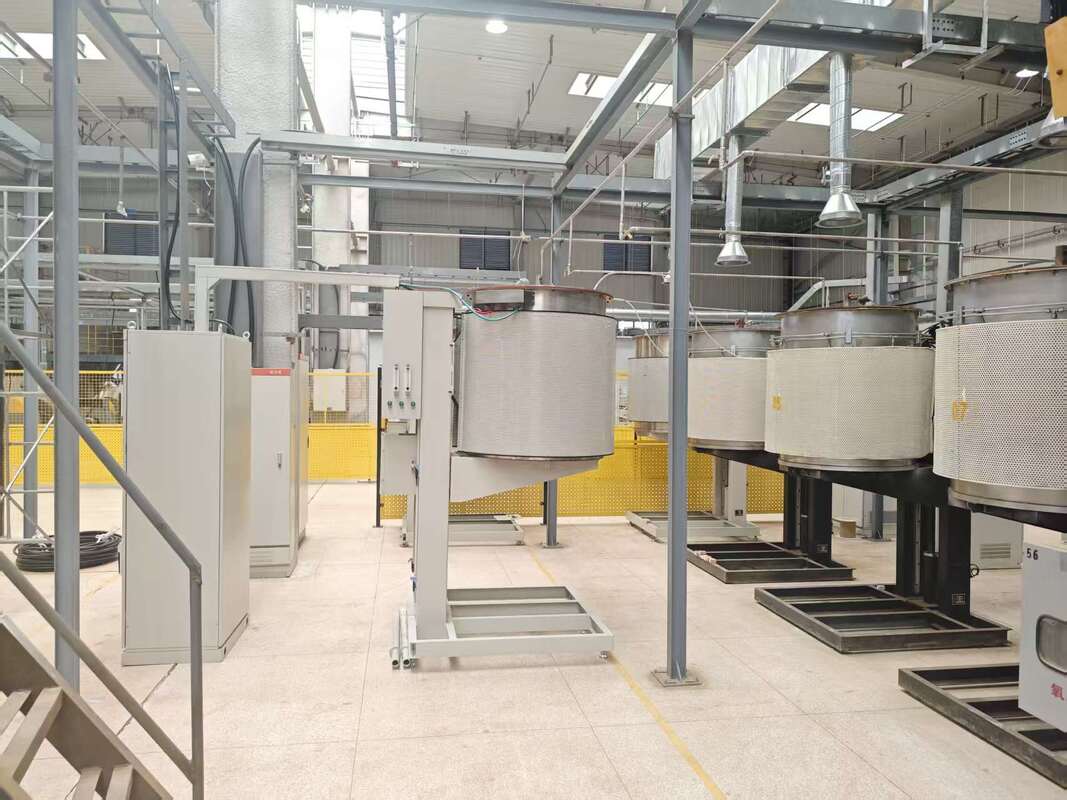

5. High Throughput with Circular Multi-Base Efficiency: The system utilizes multiple circular bases. This allows for one batch to be sintering under the bell while other bases are in loading, unloading, or controlled cooling phases. This decoupled workflow dramatically increases productivity and is perfectly suited for the batch production of standard-sized ferrite wafers and substrates.

Why Partner with Tailord?

• Magnetic Performance Excellence: Achieve the target magnetic properties (μi, Q, Bs) with exceptional batch-to-batch consistency.

• Geometric Perfection: Produce flawlessly flat substrates that are essential for automated assembly and consistent circuit performance in GHz-frequency applications.

• Production-Proven Efficiency: The round bell, multi-base system offers an optimal balance of ultra-high-temperature process quality and high-volume manufacturing throughput.

Ideal for: Debinding and sintering of Ni-Zn, Mg-Zn, and other specialty ferrite substrates and wafers for high-frequency transformers, inductors, EMI suppressors, and microwave components.

Choose Tailord to power the future of high-frequency electronics. Our round bell furnace technology provides the controlled, uniform, and ultra-high-temperature environment essential for manufacturing ferrite substrates that define the cutting edge of magnetic performance.
