Nitrogen And Hydrogen Brazing Annealing Controlled Atmosphere Bell Furnace

Nitrogen And Hydrogen Brazing Annealing Controlled Atmosphere Bell Furnace

Nitrogen hydrogen brazing furnace

Bell hydrogen brazing furnace

Nitrogen hydrogen annealing furnace

Place of Origin:

Hefei, China

Brand Name:

Tailord

Certification:

ISO9001:2015

Model Number:

HWF260-11NH

Chat Now
Request A Quote
Product Details
Max Temperature:
1150ºC
Working Temperature:
1100ºC
Chamber Dimensions:
φ550×1100mm(d×H)
Chamber Material:
SUS 310S
Atmosphere:
Nitrogen/Hydrogen/Compressed Air
Heating Element:
FEC Heater
Temperature Zones:
1 Zone
Temperature Control Points:
3 Points
Temperature Uniformity:
±5ºC
Heating Speed:
5ºC/min
Process Steps:
16 Steps
Power Supply:
54kW
Overall Dimensions:
2100×3900×1700mm(W×D×H)
Highlight:

Nitrogen hydrogen brazing furnace

,

Bell hydrogen brazing furnace

,

Nitrogen hydrogen annealing furnace

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 70,000-80,000/Unit
Packaging Details
Wooden Packages
Delivery Time
75-100 Days
Payment Terms
L/C,T/T
Supply Ability
50 Units/Year
Product Description

HWF260-11NH Nitrogen and Hydrogen Brazing Annealing Controlled Atmosphere Bell Furnace

High-end material processing and heat treatment, the precision of temperature control, stability of processes, and reliability of equipment directly determine the final product quality. With its outstanding performance and multi-functional design, it's an ideal choice for processes such as brazing, sintering, annealing, pyrolysis, and rapid prototyping, providing efficient and safe solutions for industrial manufacturing and scientific research experiments.

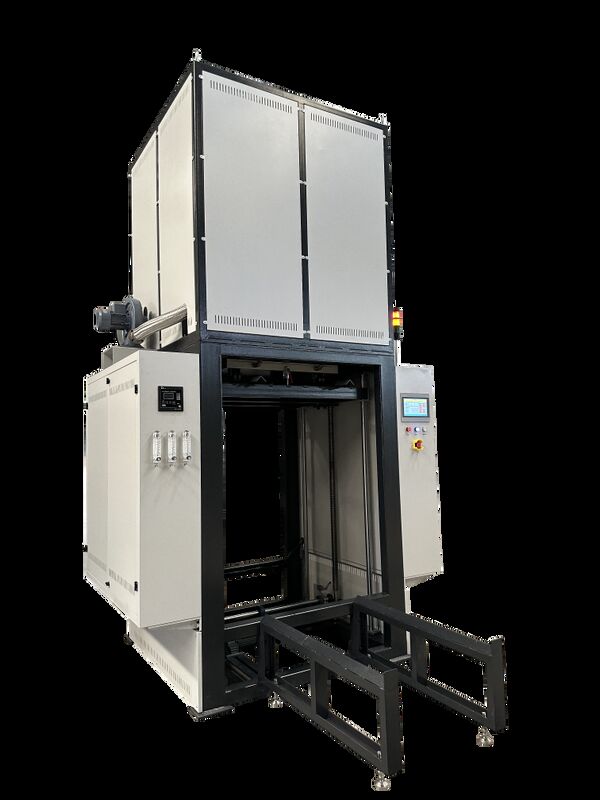

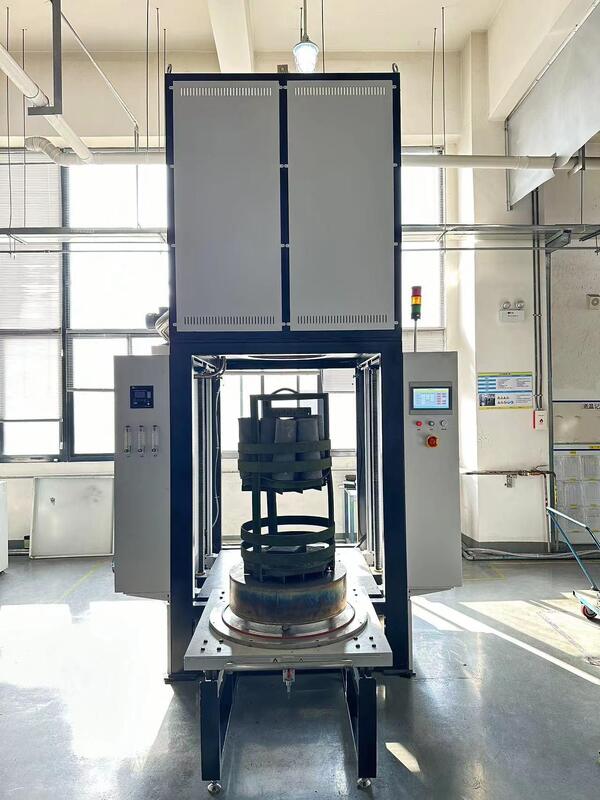

The HWF260-11NH bottom-lifting tank furnace mainly consists of six modules: external frame, heating chamber, tank body, lifting material platform, atmosphere system, and control system. It features a compact structure with distinct functions. Users can customize the chamber size and heating power according to process requirements, making it compatible with various production scenarios.

Key Advantages:
  1. High-temperature Performance with Uniform Heating
  • Rated temperature up to 1100℃, meeting the needs of various high-temperature processes.
  • Surrounding heating technology combined with a precision temperature control system ensures the temperature uniformity inside the tank reaches ±5℃. This avoids local overheating or uneven heating of materials, significantly improving product consistency.
  1. Intelligent Temperature Control for Worry-free Operation
  • Adopts imported Japanese intelligent temperature control modules, offering rapid response and precise regulation.
  • Supports multi-stage program heating, allowing one-click setting of complex processes and greatly reducing the need for manual intervention.
  1. Comprehensive and Reliable Safety Protection
  • Integrates multiple audible and visual alarm protection functions, including over-temperature, thermocouple break, low air pressure, and low water pressure.
  • Real-time monitors equipment status to ensure operational safety and eliminate potential risks.
Innovative Designs:

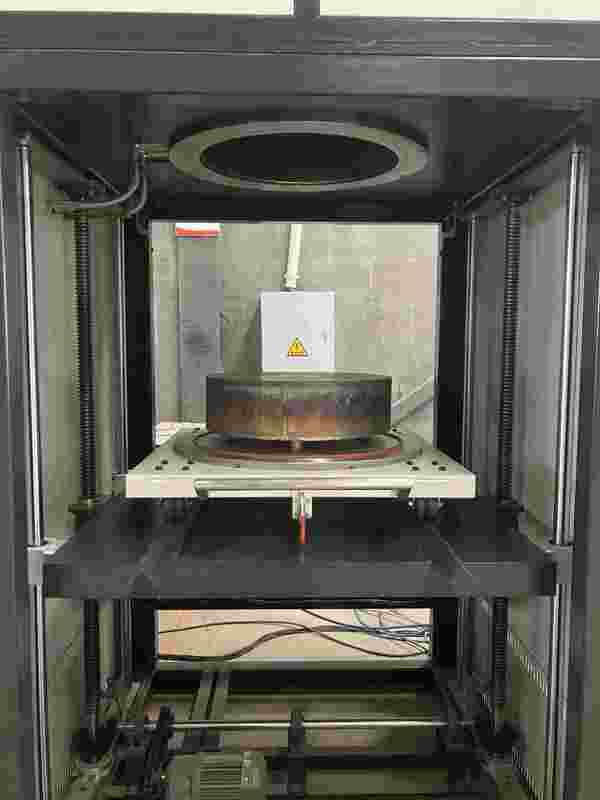

  1. Lead Screw Drive Lifting Mechanism
  • The lifting process is smooth and stable, avoiding the jitter problem of traditional hydraulic or chain drives.
  • Particularly suitable for loading and unloading precision workpieces or fragile materials, enabling easier operation and more accurate positioning.
  1. Large-capacity Effective Space
  • The tank body is designed with dimensions of φ550×1100mm (D×H), balancing batch processing and large workpiece requirements.
  • Flexibly adapts to various production scenarios.

Nitrogen And Hydrogen Brazing Annealing Controlled Atmosphere Bell Furnace 0



TAILORD – EXPERT IN INDUSTRIAL HEAT TREATMENT FURNACES



Established in 2016, Hefei Tailord Electronic Equipment Co., Ltd. is headquartered in Hefei, Anhui Province, a city renowned for its excellence in science and education. As a modern enterprise specializing in the R&D, sales, design, and manufacturing of industrial furnaces, We have been recognized by government as a high-tech enterprise, a technology-based SME, an innovative SME, and has obtained ISO international quality system certification. We have also been honored with titles such as Class A Taxpayer and Class A Contract and Creditworthy Enterprise. The company holds dozens of utility model patents, invention patents, and copyrights. In the field of industrial furnaces, Tailord has established long-term, stable partnerships with hundreds of leading global enterprises, universities, and research institutions, thanks to its profound technological expertise and leading market share.








FAQ



Q1. Is Tailord a Furnace manufacturer or trading agent?

A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.



Q2. What kind of furnaces do you have?

A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.



Q3. What about the lead time?

A: 60-90 days for furnace production.



Q4. Do you have any MOQ limit for furnace order?

A: Low MOQ, 1 unit is available.



Q5. How do you ship the goods and how long does it take to arrive?

A:  Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.



Q5. How to proceed an order for furnace?

A: Firstly, let us know your detailed requirements or application.

Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.

Thirdly, customer confirms the contact and places deposit for formal order.

Lastly, we arrange the production.



Q7: Do you offer guarantee for the furnaces?

A: Yes, we offer 1 year warranty after the final acceptance.



Q8: Could offer on-site installation and commission?

A: According to the specific furnace model, we will offer on-line support or on-site service.
