900mm Belt Debinding and Sintering Furnace IR Quartz Heaters for Thick Film Chip Resistors

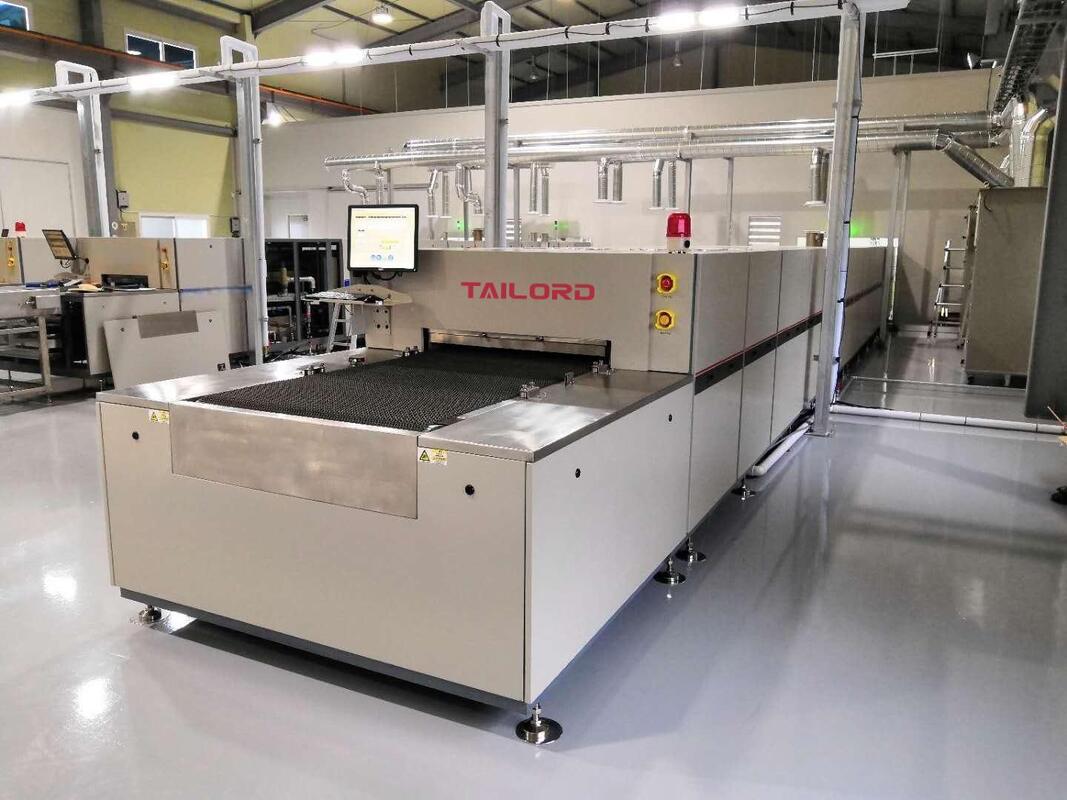

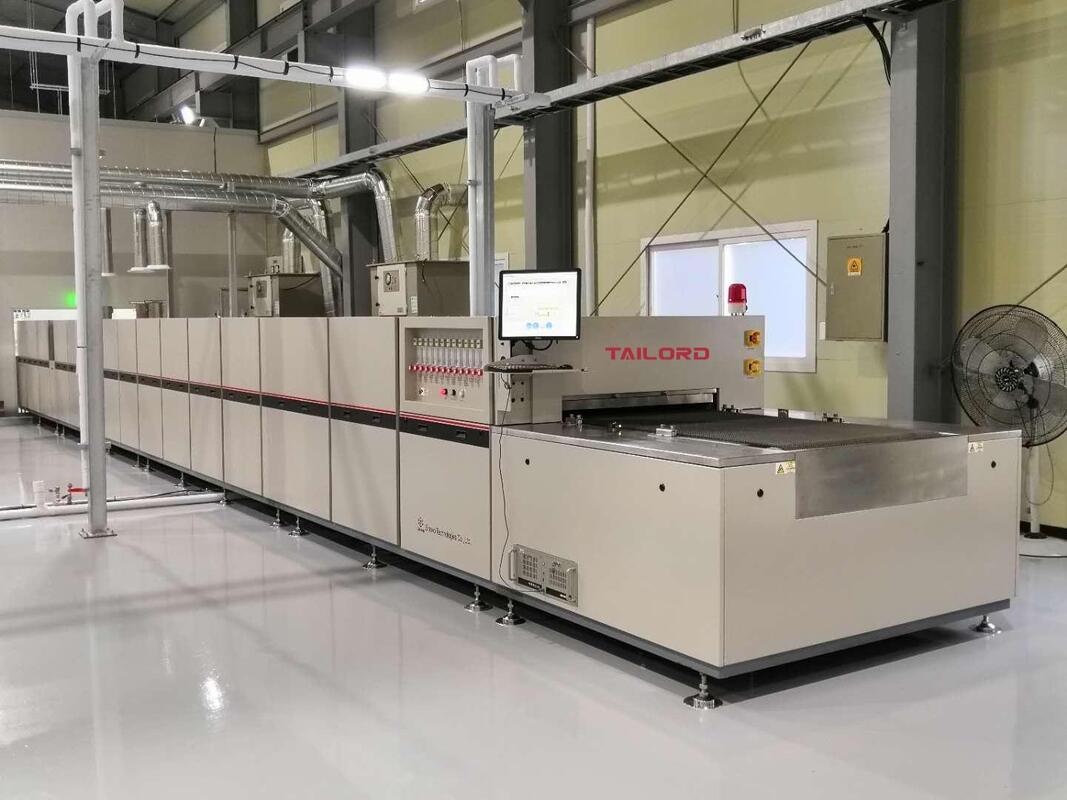

Integrated Drying & Firing Mesh Belt Furnace for Thick-Film Chip Resistors

Precision Engineering for Unmatched Tolerance, TCR, and Stability

The performance of thick film resistors, foundational components in virtually all electronic circuits, is born in the firing process. Achieving tight resistance tolerances, low Temperature Coefficient of Resistance (TCR), and long-term stability demands unparalleled control over the thermal profile. Tailord's Integrated Drying & Firing Mesh Belt Furnaces are the industry benchmark for this precise art. By seamlessly combining rapid infrared drying with a meticulously calibrated sintering profile in a single, continuous system, we deliver the process consistency required to produce high-performance, reliable resistors at volume, from consumer electronics to automotive-grade applications.

Key Applications & Process Advantages for Thick Film Resistor Manufacturing:

1. High-Speed Infrared (IR) Drying for Pattern Integrity: The process initiates with a controlled IR drying zone. This rapidly evaporates solvents from the printed resistor paste without causing "mud-cracking" or edge drift, which is critical for preserving the as-printed resistor geometry and achieving precise, predictable resistance values after firing.

2. Complete Organic Binder Removal (Debinding): Following drying, the conveyor transports the substrates through a carefully profiled thermal debinding zone. Gradual heating in an air atmosphere ensures the complete and clean burnout of polymeric binders and plasticizers, preventing blistering, carbon residue, or delamination that would severely degrade resistor performance and stability.

3. Precision Sintering for Optimal Microstructure: The heart of the furnace provides a perfectly uniform air atmosphere and thermal profile. This sinters the glass-ceramic and conductive oxide (e.g., RuO₂) matrix, forming the resistor's final microstructure. This directly governs key parameters like sheet resistivity (R□), TCR, and current noise.

4. Exceptional Temperature Uniformity for Tight Tolerances (±1-2°C): We guarantee exceptional temperature uniformity across the entire belt width. This ensures every resistor on a substrate, from center to edge, fires identically. This is the non-negotiable foundation for achieving batch-to-batch consistency and tight resistance tolerances (e.g., ±1%, ±0.1%).

5. Active TCR Control through Thermal Profile Tuning: The TCR of the resistor is highly sensitive to the peak firing temperature and time-at-temperature. Our precise multi-zone control allows for fine-tuning of the profile, enabling manufacturers to consistently hit target TCR specifications, from ±100 ppm/°C to ultra-precise ±25 ppm/°C grades.

6. High-Volume Manufacturing for Global Electronics: Designed for 24/7 continuous operation, this integrated system is the engine for mass-producing resistors for everything from smartphones to automotive control units. It eliminates bottlenecks, maximizing throughput for the electronics supply chain.

7. Superior Adhesion to Alumina Substrates: The sintering profile promotes a strong chemical bond between the resistor film and the alumina (Al₂O₃) substrate. This ensures mechanical robustness and stable performance under thermal cycling and board-level stresses.

8. Optimized for Laser Trim Stability: A uniformly and perfectly fired resistor film provides a stable and predictable response to laser trimming. Our process ensures minimal post-trim drift (ΔR/R), which is crucial for achieving final resistance values with high accuracy.

9. Process Flexibility for Diverse Pastes: The furnace can be easily configured with different thermal profiles to accommodate a wide range of resistor paste chemistries from various suppliers, ensuring optimal results for each specific formulation.

10. Foundation for Long-Term Reliability: A complete firing process, from drying to sintering, results in a stable, stress-relieved resistor film. This directly translates to superior performance under humidity, load life, and other stringent reliability tests, meeting standards like AEC-Q200.

Partner with Tailord to set the standard in circuit performance. Our integrated drying and firing solutions provide the thermal foundation for thick film resistors that deliver uncompromising accuracy, stability, and value.

• Industrial PC integrated control system
• Ultrasonic mesh belt cleaning system
• Profiling test thermocouple
• Exhaust gas treatment system
• Industrial chiller
