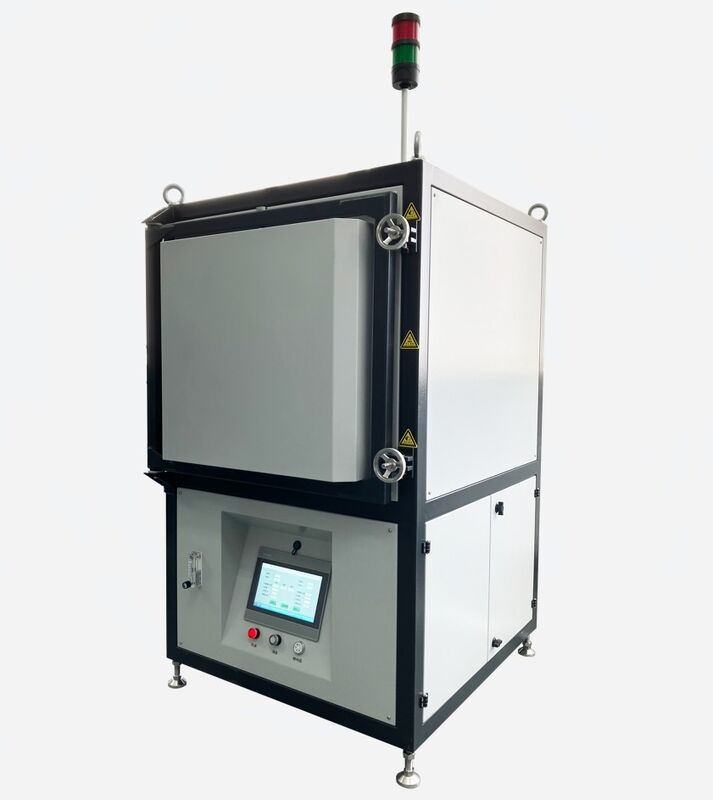

20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom

20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom

20kW Debinding And Sintering Furnace Oven

Vertical Debinding And Sintering Furnace

Debinding vertical heat treat oven

Place of Origin:

Hefei, China

Brand Name:

Tailord

Certification:

ISO9001:2015

Model Number:

HBF50-14

Chat Now
Request A Quote
20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom
Product Details
Highlight:

20kW Debinding And Sintering Furnace Oven

,

Vertical Debinding And Sintering Furnace

,

Debinding vertical heat treat oven

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 70,000-90,000/Unit
Packaging Details
Wooden Packages
Delivery Time
75-100 Days
Payment Terms
L/C,T/T
Supply Ability
100 Pcs/Year
Related Products
Good price Mesh Belt Debinding And Sintering Furnace Tempering Industrial Ovens OEM online

Mesh Belt Debinding And Sintering Furnace Tempering Industrial Ovens OEM

Chat Now
Good price ODM LTCC MLCC Gas Fired Metal Heat Treatment Furnace for Debinding online

ODM LTCC MLCC Gas Fired Metal Heat Treatment Furnace for Debinding

Chat Now
Good price OEM Debinding Sintering Heat Treatment Gas Furnace For Aluminium 51kW online

OEM Debinding Sintering Heat Treatment Gas Furnace For Aluminium 51kW

Chat Now
Good price 20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom online

20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom

Chat Now
Contact Us
+86-15855517001
van@tailord-corp.com
86-551-62550219
Chat Now
Product Description
1. Application:


This equipment is mainly designed for sintering process of Electronic Ceramics, Magnetic Materials and other relevant materials.

2. Technical Specification:

  1. Nominal working Temp.: 1300ºC
  2. Max Temp.: 1400ºC
  3. Atmosphere: Air
  4. Effective Chamber Dimensions: 300mm×200mm×550mm(W×H×D)
  5. Max. Heating Power: 20kW
  6. Loading Method: Corundum Mullite Setter
  7. Heating Method: SiC Rods ( up and down of chamber)
  8. Temp. Uniformity: ± 5ºC ( tested in 1 hour insulation at 1300ºC)
  9. Thermcouple: Type S
  10. Temperature Control: 1 Point (controller with P.I.D function)
  11. Exhaust System: 1 exhaust port behind chamber with manual adjustment
  12. Alarm System: audible and visual alarm in case of Over temp, thermcouple broken, low air pressure, etc
  13. Furnace Surface Temperature ≤ 40ºC
  14. External Dimensions: 1150mm×1970mm×1300mm(W×D×H)
