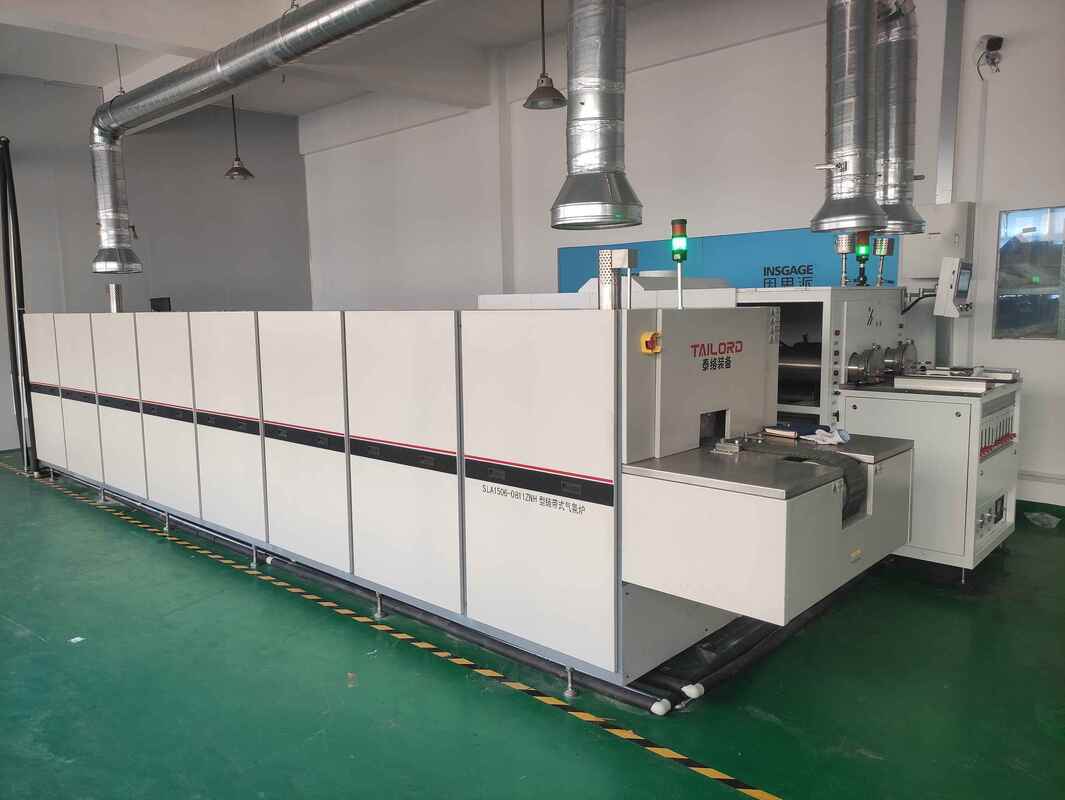

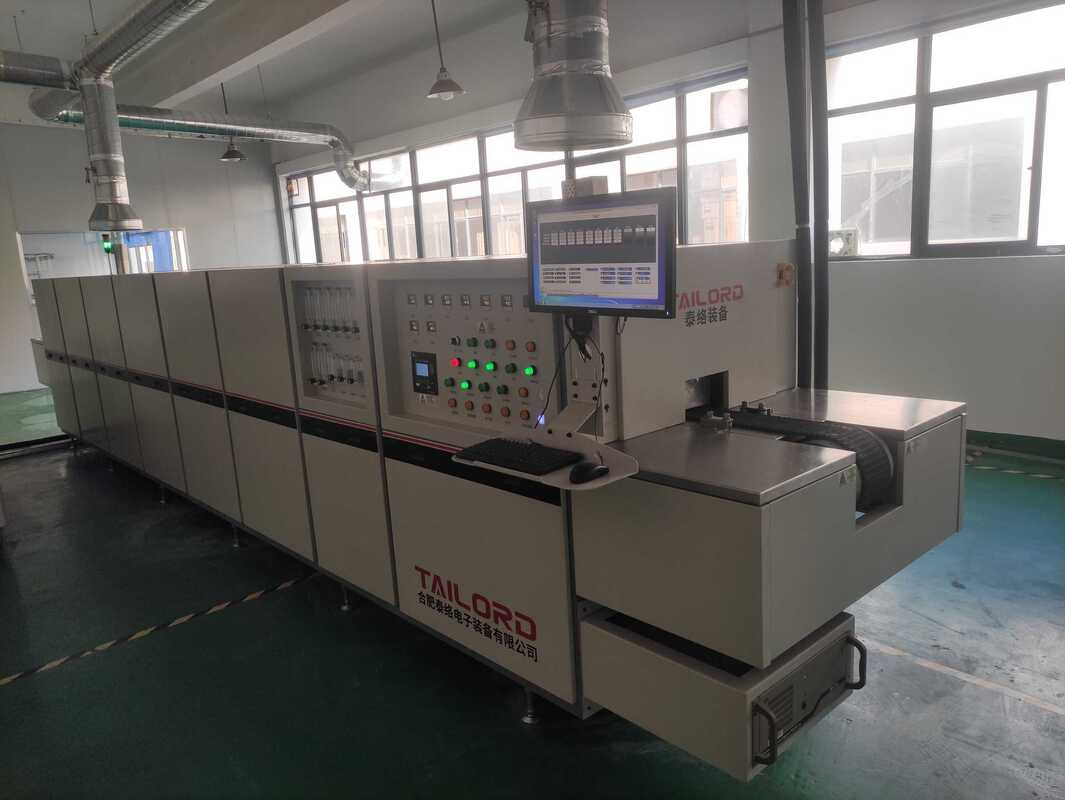

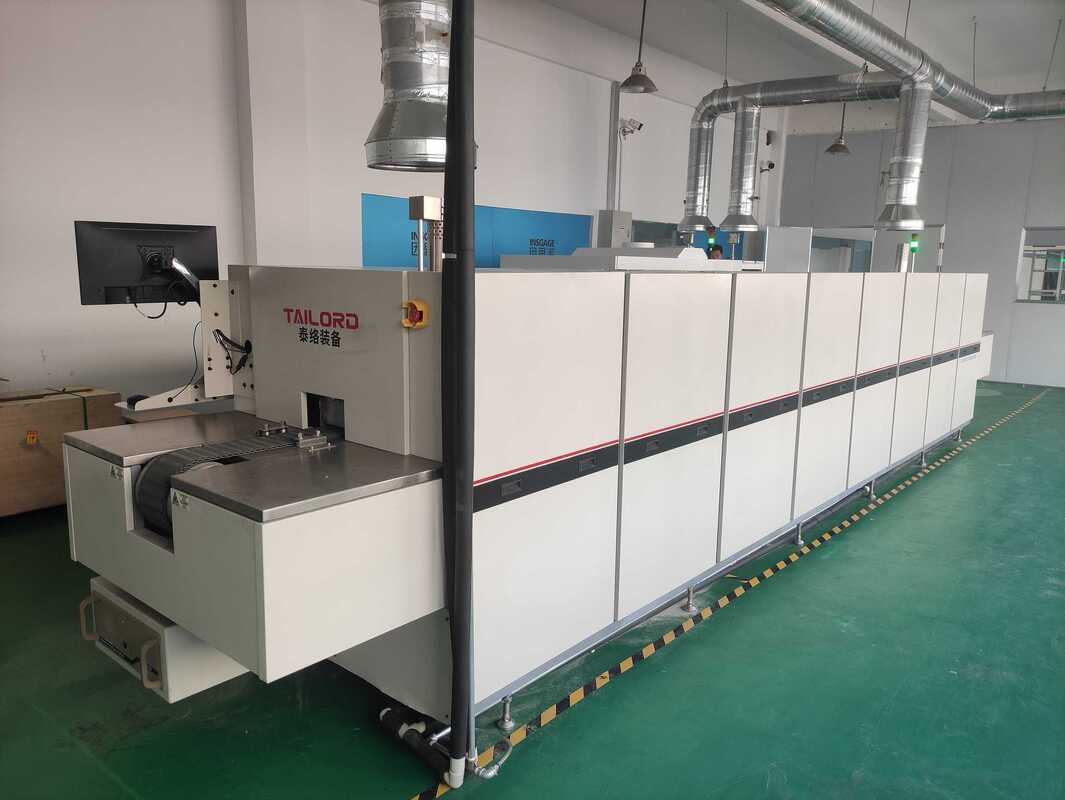

Industrial Hydrogen Continuous Hardening And Tempering Furnace Heat Treat for HTCC Brazing

Precision Joining for Extreme Environments: Where Ceramic Meets Metal with Uncompromising Strength

HTCC components, renowned for their exceptional thermal stability and high-temperature capability, form the backbone of the most demanding aerospace, power, and RF modules. The final step—attaching metal leads, lids, or heat sinks—is a critical challenge. Tailord's Atmosphere Mesh Belt Brazing Furnaces are precision-engineered to master this challenge. We provide the exacting combination of a high-temperature capable furnace, a precisely controlled atmosphere, and a uniform thermal profile to create robust, reliable metal-ceramic joints that leverage the full performance potential of HTCC in the most extreme applications.

Key Applications & Process Advantages for HTCC Brazing:

1. High-Temperature Active Metal Brazing (AMB): Excellently suited for brazing metals (e.g., Kovar, Copper) directly to already-sintered HTCC substrates using active braze alloys (e.g., containing Titanium or Zirconium). The furnace provides the high-temperature environment and pristine atmosphere necessary for the active element to react with the alumina ceramic, creating a strong, direct chemical bond.

2. Creating Reliable Electrical Feedthroughs and Leads: Perfect for brazing pin headers, lead frames, and coaxial connectors onto HTCC packages. The process ensures a hermetic and mechanically strong seal around each pin, which is critical for providing reliable electrical interconnects in vacuum or high-pressure environments.

3. Hermetic Lid Sealing for Harsh Environments: Achieve a true hermetic seal by brazing a metal lid onto an HTCC package. This creates an impregnable barrier, sensors, or RF chips from moisture, chemicals, and particulates in aerospace, downhole, and automotive applications.

4. Superior Thermal Path for Power Devices: Braze copper or molybdenum heat spreaders directly onto HTCC substrates. This creates a low-thermal-resistance pathway essential for efficiently dissipating heat from high-power devices like GaN amplifiers and laser diodes, leveraging HTCC's own high thermal stability.

5. Flux-Free Process in Ultra-Clean Atmosphere: All brazing is performed in a high-purity hydrogen-nitrogen or vacuum-capable atmosphere, entirely eliminating the need for chemical fluxes. This prevents contamination, corrosion, and void formation, which is non-negotiable for the long-term reliability of high-voltage and microwave circuits.

6. Exceptional Temperature Uniformity for Stress Management: HTCC brazing often requires temperatures approaching 1000°C. Our furnaces guarantee exceptional temperature uniformity (±3°C) at these extremes, which is vital for preventing warpage and minimizing residual thermal stress in the final assembly, ensuring dimensional stability and joint integrity.

7. Compatibility with Refractory Metallization (W, Mo-Mn): The process is fully compatible with HTCC's inherent tungsten or molybdenum-manganese metallization. The atmosphere promotes excellent wetting of the braze filler on these refractory metals, forming a low-resistance, void-free interfacial layer.

8. High-Throughput for Demanding Sectors: The continuous mesh belt design enables the serialized processing of multiple HTCC components, providing the throughput required for the volume production of critical components in the defense and telecommunications industries.

9. Precise Atmosphere Control for Oxide-Free Surfaces: The reducing hydrogen atmosphere ensures that all metal surfaces (pins, lids, preforms) and the HTCC's metallization are oxide-free at brazing temperature. This is the absolute prerequisite for achieving perfect capillary flow and metallurgical bonding.

10. Enabling System-in-Package (SiP) Integration: By providing a reliable method to attach diverse components (e.g., ceramic lids, metal heat sinks) to the HTCC platform, our brazing technology is a key enabler for creating complex, multi-functional System-in-Package modules that operate reliably under extreme conditions.

Partner with Tailord to push the boundaries of performance. Our HTCC brazing solutions provide the critical link that transforms inert ceramic substrates into fully functional, high-reliability systems built to endure where others cannot.

• Industrial PC integrated control system
• Ultrasonic mesh belt cleaning system
• Profiling test thermocouple
• Exhaust gas treatment system
• UPS Power Supply
• Industrial chiller
