Place of Origin:
Hefei, China
Brand Name:
Tailord
Certification:
ISO9001:2015
Model Number:
SLF5605-0504
The equipment is mainly used for reflow soldering of surface-mounted components, chips, and similar products. The specific details are as follows:
2.1 Rated Temperature: 300°C; Maximum Temperature: 350°C
2.2 Effective Height: 50mm
2.3 Belt Width: 560mm
2.4 Belt Material: SUS304
2.5 Maximum Load: 20kg/m² (excluding the weight of the belt)
2.6 Transmission System: Gear and belt meshing transmission
2.7 Speed Range: 100mm-800mm/min, infinitely variable speed with frequency converter
2.8 Heating Element: Nickel-chromium heating wire
2.9 Heating Method: Up and down hot air circulation heating
2.10 Sintering Environment: Air
2.11 Exhaust System: One exhaust chimney at the inlet and outlet respectively
2.12 Cooling Method: Air cooling
2.13 Structural Division: (See Section 3.1 for detailed technical description)
2.14 Temperature Stability: ±1°C
2.15 Furnace Temperature Uniformity: ±3.5°C (at 250°C)
2.16 Number of Temperature Zones: 5
2.17 Number of Temperature Control Points: 10 points (1 point each for top and bottom)
2.18 Thermocouple: K-type
2.19 Alarm Indication: Over-temperature, thermocouple breakage, etc., with audible and visual alarm protection
2.20 Heating Rate: ≤20°C/min
2.21 Surface Temperature Rise: <35°C
2.22 Heating Power: 33kW
2.23 No-load Insulation Power: ≤12kW
2.24 Weight: Approximately 1400kg
The entire furnace is mainly divided into four major parts: the furnace body, temperature control system, and transmission system.

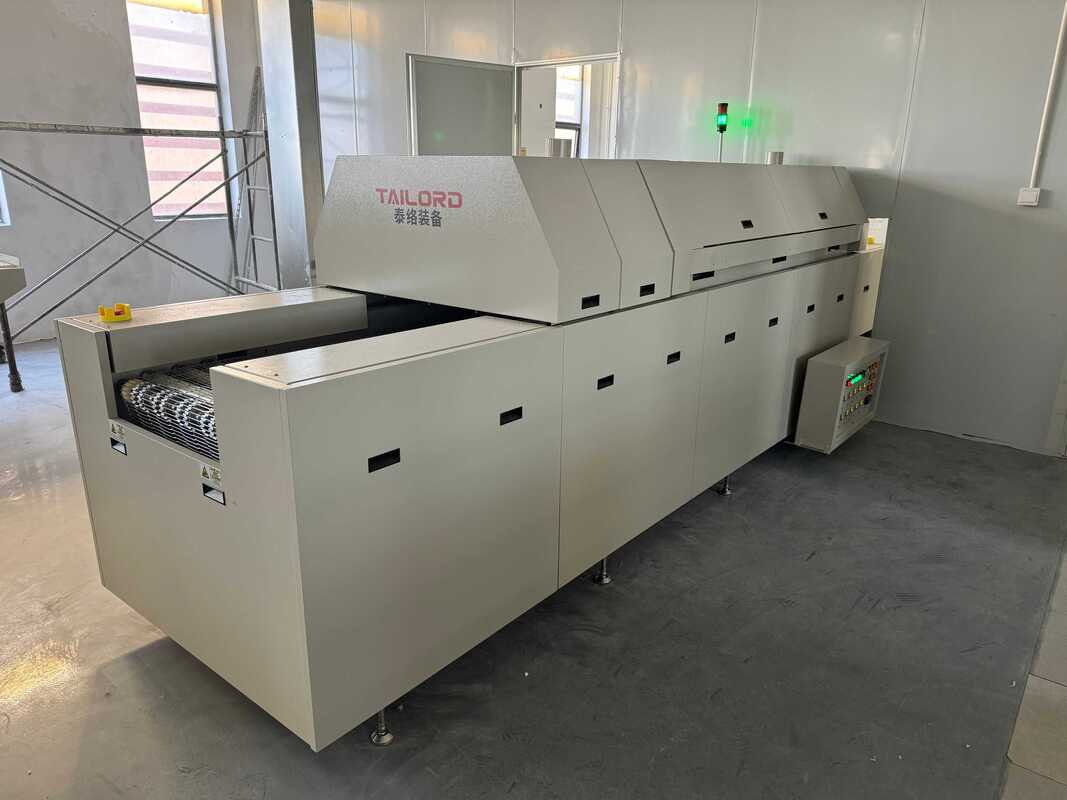

Furnace body structure division: Inlet platform, inlet transition section, heating section, outlet transition section, cooling section, outlet platform. The specific distribution is detailed in Figure 1 and Table 1.
Table 1
| Code | Name | Length | Description |
|---|---|---|---|
| A | Total Equipment Length | 4600mm | |

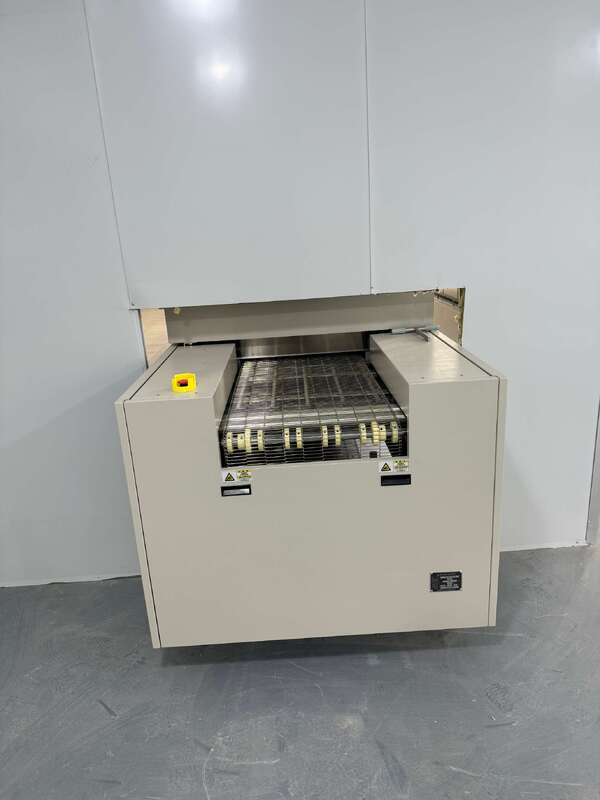

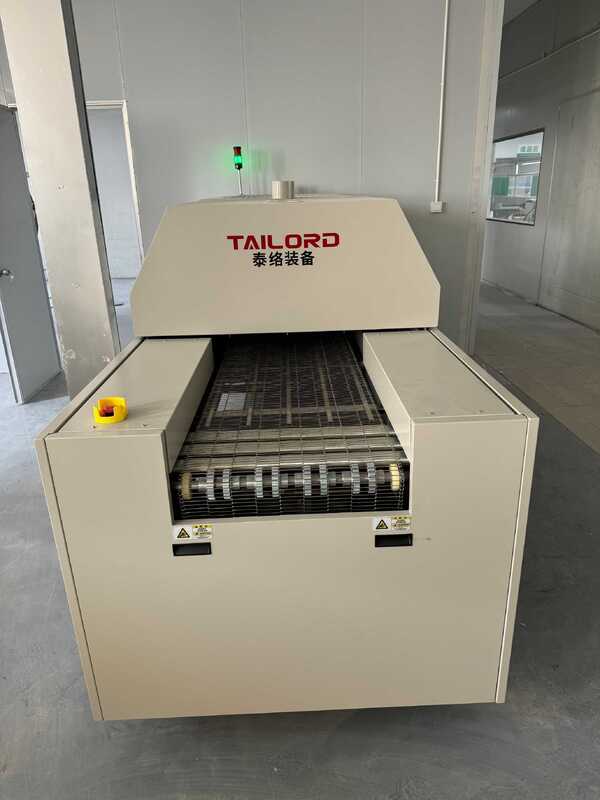

| B | Inlet Platform | 930mm | Adjustable height from the ground: 870~920mm |
| C | Inlet Insulation Transition | 110mm | Ceramic fiber material insulation transition |
| D | Heating Section | 1775mm | 5 temperature zones, each zone is 355mm long |
| E | Outlet Insulation Transition | 110mm | Ceramic fiber material insulation transition |
| F | Cooling Section | 740mm | No insulation material, mechanical cooling fans blow directly |
| G | Outlet Platform | 900mm | Adjustable height from the ground: 870~920mm |
| H | Equipment Height | 1450mm | Excluding the height of the feet |
3.2.1 Temperature Measurement: Each control and detection point uses an independent K-type thermocouple for measurement.

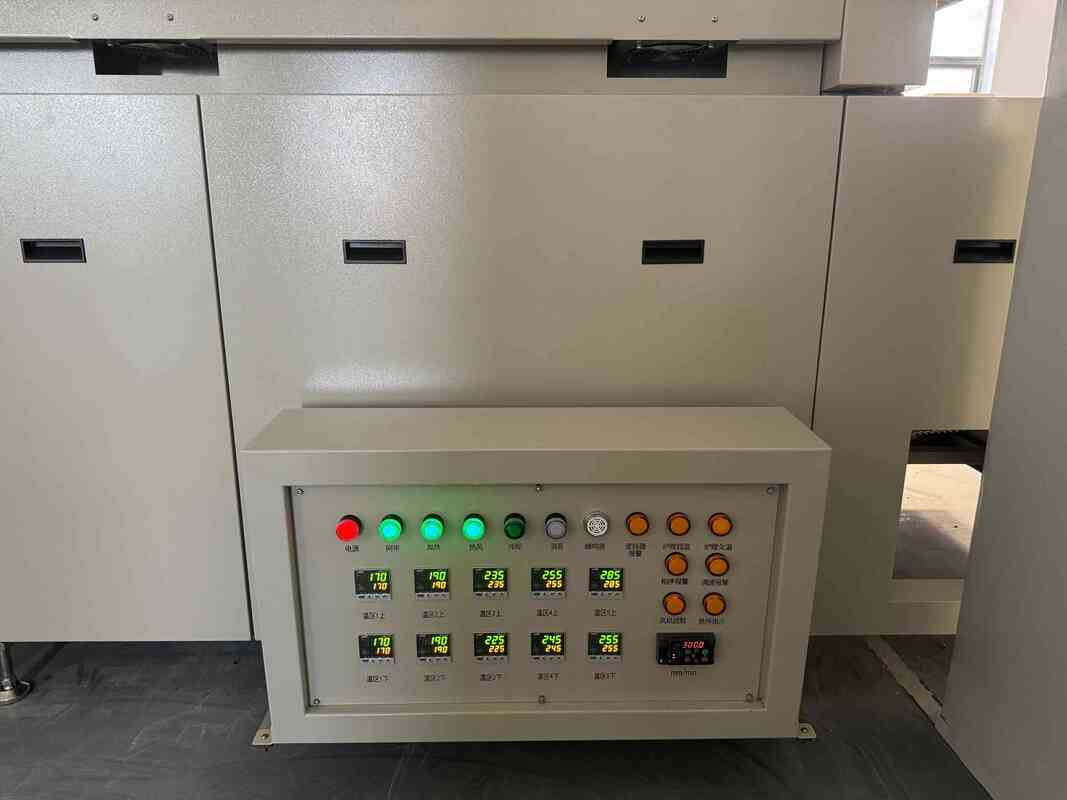

3.2.2 Control Instrument: An imported intelligent regulator is used for control. It has multiple alarm protection functions such as PID parameter self-tuning, high-temperature upper limit alarm, and thermocouple failure indication.
3.2.3 Heating Control: Heating can be turned on after the hot air circulation is running. The heating part is powered by multiple AC contactors in groups to reduce the instantaneous current impact on the power grid.
3.2.4 Control Method: Solid-state relay zero-crossing triggering method.
3.2.5 Over-temperature Handling: When the temperature in a certain temperature zone exceeds the limit, the over-temperature alarm system for that zone immediately issues an audible and visual alarm signal and cuts off the heating, with the buzzer emitting a continuous alarm sound.
3.3.1 The transmission control uses a frequency converter to drive the frequency conversion motor, controlled through a reducer, with continuously adjustable speed.
3.3.2 The belt conveyor device is driven by sprockets and chains, which drive the main and driven wheels, and the belt runs through the friction force between the transmission wheel and the belt. Belt alignment devices are installed on both sides of the inlet and outlet.
The equipment composition and delivery list are shown in Table 2:
Table 2
| Name | Main Content | Quantity | |
|---|---|---|---|
| Basic Components | Furnace Oven | 1 unit | |
| Basic Components | Inspection Certificate | Qualification certificates of major purchased components | 1 set |
| Basic Components | Technical Documents | Instruction manual, random technical documents of major purchased components, etc. | 1 set |
| Basic Components | |||
| Key Components | Heating Wire | 10 sets | |
| Key Components | Hot Air Motor | 10 units | |
| Key Components | |||
| Spare Parts | Solid-state Relay | 1 piece | |
| Spare Parts | Heating Wire | 1 set |
6.1.1 Equipment Transportation Method: Overall transportation: Total length = 4600mm, width W = 1156 mm, height H = 1450 mm.
6.1.2 Equipment Unloading: 2-ton hydraulic forklift (or 2-ton crane) 2 units.
6.1.3 Equipment Unloading/Positioning: After the equipment arrives at the customer's site, the customer inspects the equipment for any damage. If there is no damage, the customer is responsible for unloading the equipment to the designated location.
6.1.4 Pre-installation Preparation: The customer needs to prepare in advance, with specific parameters detailed in (Normal Operating Conditions of the Equipment).
6.1.5 On-site Construction: The customer is responsible for: equipment positioning at the site, including equipment unloading, wiring of external power lines to the main switch of the equipment, and the factory's exhaust system (including hoods, etc.).
6.1.6 Manufacturer's Responsibility: On-site assembly of the equipment, furnace construction, and functional debugging of the equipment, and assistance to the buyer in process debugging.
6.2.1 Environmental Conditions: Temperature: 0~40°C, Humidity: ≤80%RH, No corrosive gases, No strong air currents.
6.2.2 Ventilation System: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 40m³/h.
6.2.3 Floor: Level, no significant vibration, load-bearing capacity >500Kg/m².
6.2.4 Power Conditions: Capacity greater than 45kVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz. Live wire: yellow, green, red; neutral wire: blue; ground wire: yellow-green.
6.2.5 Installation Site: 6000x3000x3000(LxWXH), installation area greater than 18m².
FAQ
Q1. Is Tailord a Furnace manufacturer or trading agent?
A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.
Q2. What kind of furnaces do you have?
A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.
Q3. What about the lead time?
A: 60-90 days for furnace production.
Q4. Do you have any MOQ limit for furnace order?
A: Low MOQ, 1 unit is available.
Q5. How do you ship the goods and how long does it take to arrive?
A: Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.
Q5. How to proceed an order for furnace?
A: Firstly, let us know your detailed requirements or application.
Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.
Thirdly, customer confirms the contact and places deposit for formal order.
Lastly, we arrange the production.
Q7: Do you offer guarantee for the furnaces?
A: Yes, we offer 1 year warranty after the final acceptance.
Q8: Could offer on-site installation and commission?
A: According to the specific furnace model, we will offer on-line support or on-site service.
