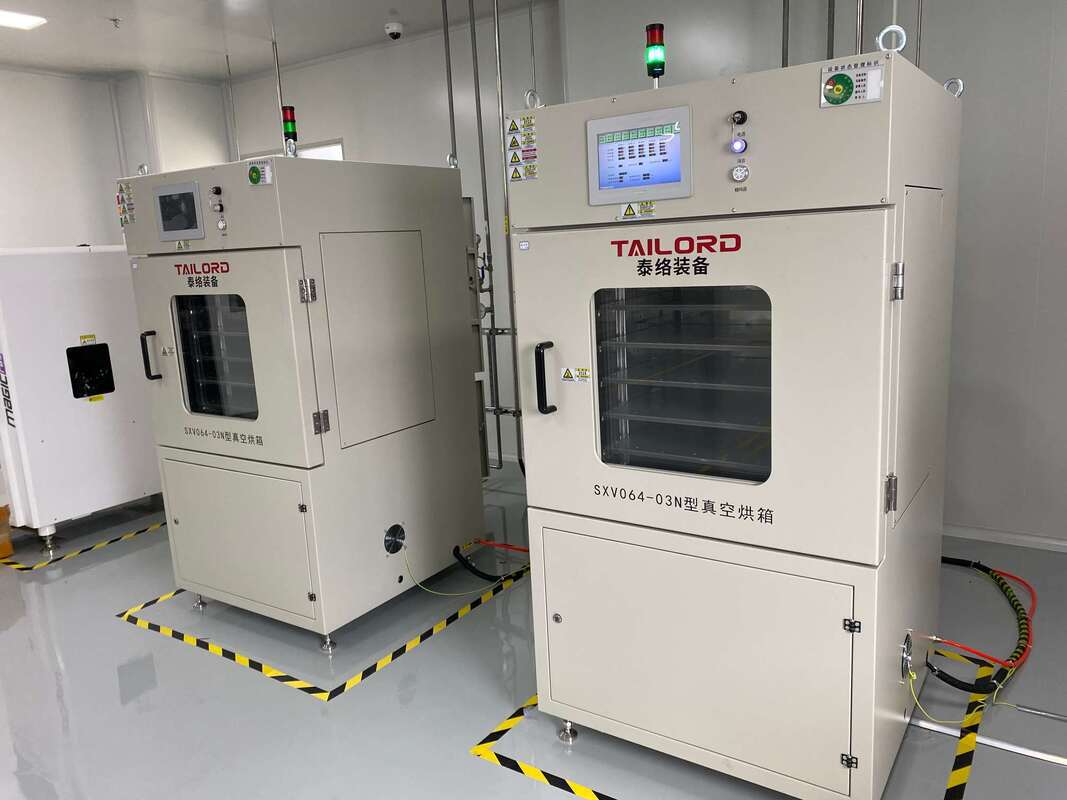

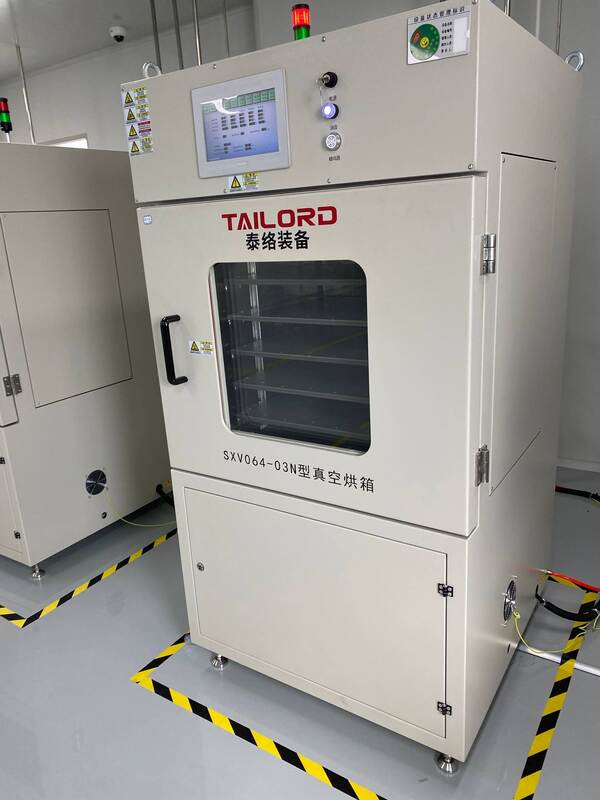

10Pa Vacuum Nitrogen Drying Metal Tempering Oven Industrial Box Type 7kW

Vacuum Nitrogen Oven

The Ultimate Solution for High-Purity, Oxidation-Free Thermal Processing

A Vacuum Nitrogen Oven combines the two most effective methods for creating an ultra-clean, inert processing environment: first, a vacuum cycle to forcibly remove air and moisture; second, backfilling with high-purity nitrogen to create a pristine, oxygen-free atmosphere for the thermal cycle. This two-step process is the gold standard for handling the most sensitive materials.

Key Applications:

• Advanced Semiconductor Packaging: Moisture removal and curing processes for wafer-level packaging (WLP), 3D IC assembly, and to prevent oxidation of exposed copper pillars or interconnects.

• MXene, Graphene & 2D Material Drying: Prevents the restacking and oxidation of these highly air-sensitive nanomaterials, preserving their electrical properties.

• High-End Powder Metallurgy & MIM: Drying and curing of metal injection molded (MIM) "brown" parts prior to sintering, eliminating binder oxidation and ensuring surface purity.

• Aerospace & Military Component Preparation: Drying and outgassing of critical components like gyroscopes and inertial navigation systems to ensure long-term reliability in vacuum or sealed environments.

Key Advantages & Features:

1. Two-Stage Purity Assurance: The process begins with a vacuum cycle to aggressively evacuate air, moisture, and volatile contaminants from the chamber and the product's surface and pores. This is followed by backfilling with dry Nitrogen, establishing a guaranteed oxygen-free and moisture-free environment for the heating phase.

2. Superior Moisture Removal for Sensitive Materials: Vacuum drying is significantly more effective than purging alone for removing deeply trapped or adsorbed moisture, especially from porous structures, fine powders, or complex geometries. This is critical for preventing defects in subsequent high-temperature processes.

3. Efficient Gas Usage & Enhanced Safety: By removing the majority of the air via vacuum first, the amount of high-purity nitrogen required to achieve an ultra-low oxygen environment is drastically reduced. This leads to substantial operational cost savings. The vacuum step also safely removes flammable solvent vapors.

4. Prevention of Micro-Explosions in Powders: For fine, cohesive powders, vacuum drying prevents the "bumping" or "micro-explosions" that can occur when trapped moisture rapidly vaporizes in a standard oven, which can fluidize and ruin the powder bed.

5. Process Versatility and Repeatability: The system allows for fully programmable multi-step recipes, including vacuum hold, nitrogen refill, heating, and cooling cycles. This provides unparalleled control and repeatability for complex, high-value manufacturing and R&D processes.
