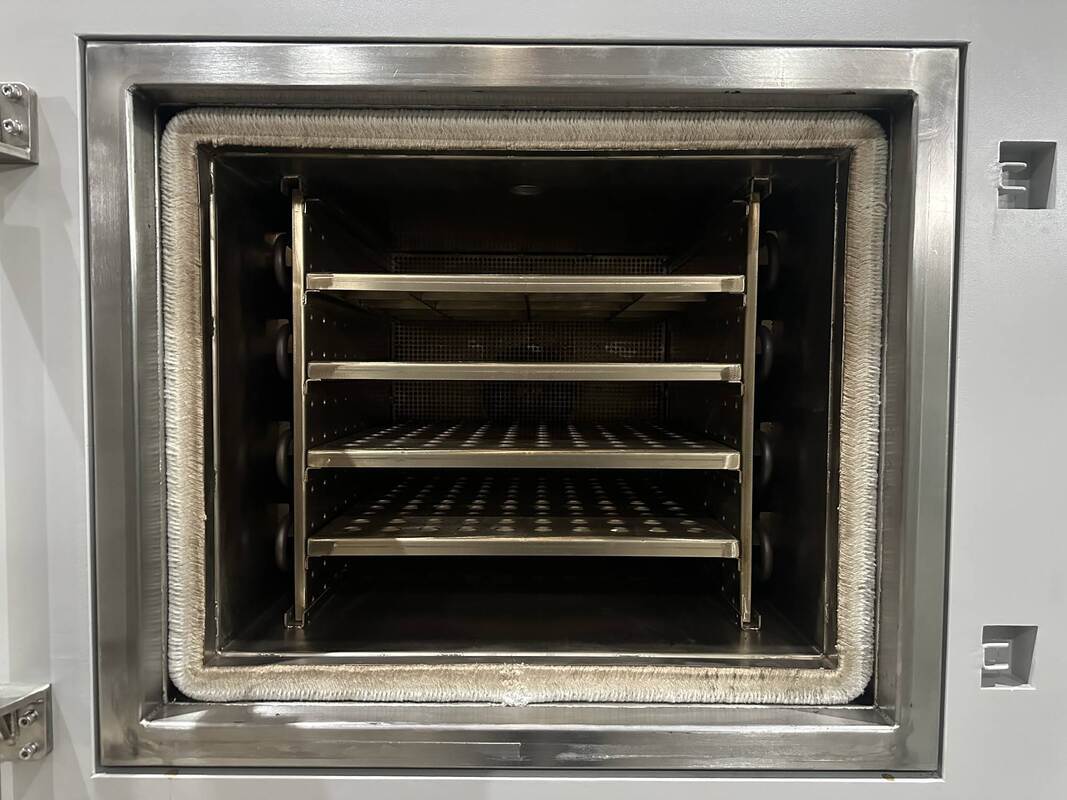

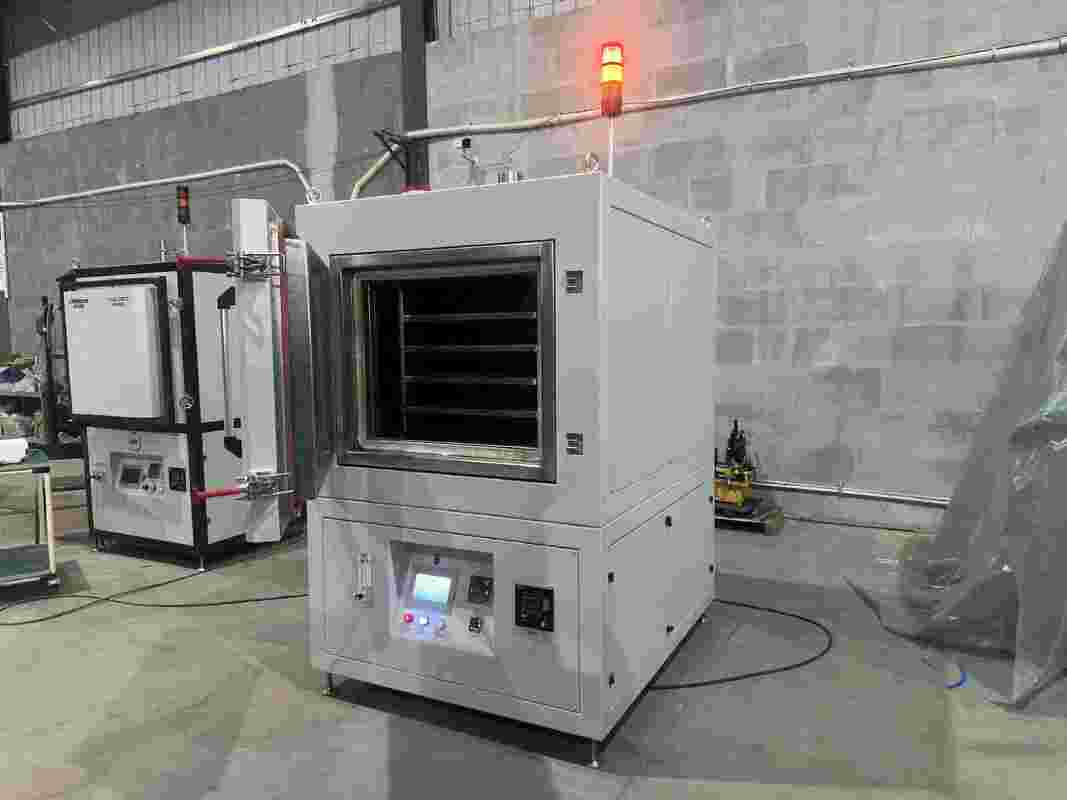

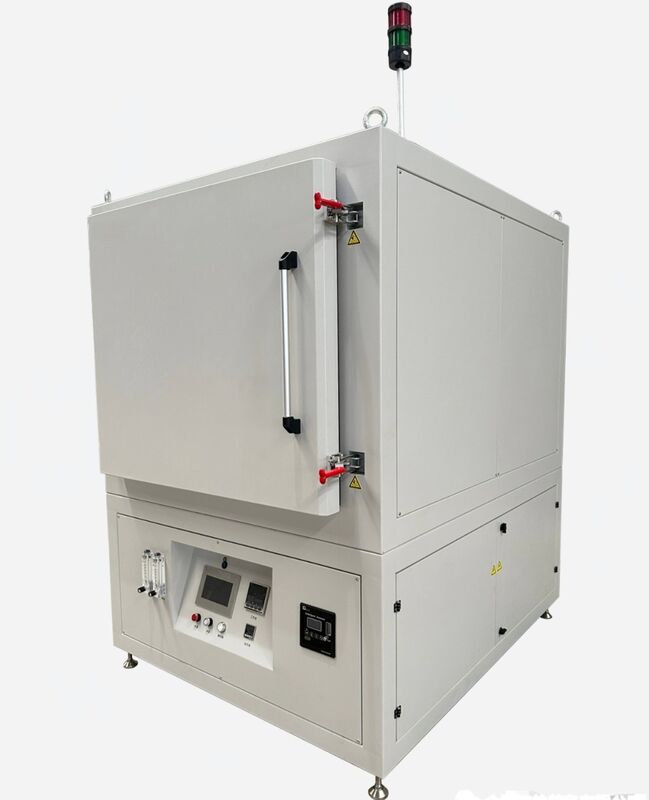

PID 10ppm Nitrogen Drying Steel Tempering Oven Industrial Heat Treat 18kW

Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

2. Mainly Specifics:

1. Rated Temp.: 350ºC
2. Max Temp.: 500ºC
3. Effective Dimensions: 600 × 600 × 600mm(W×H×D)
4. Heating Method: Stainless Steel Heater
5. Process Atmosphere: Nitrogen
6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
7. Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
8. Thermocouple: Type K
9. Temperature control points: 1
10. Temperature measurement points: 1 point
11. Process Steps: 4 × 10 steps
12. Exhaust: One exhaust port on top
13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
14. Max Heating Power: 18kW
15. Insulation Power: ≤ 12kW
16. Surface Temperature Rise: ≤ 35ºC
17. Weight: about 900kg
18. Furnace Dimensions: about 1350×1750×21950mm (W×H×D);
19. Appearance Color: light gray

TAILORD – EXPERT IN INDUSTRIAL HEAT TREATMENT FURNACES

Established in 2016, Hefei Tailord Electronic Equipment Co., Ltd. is headquartered in Hefei, Anhui Province, a city renowned for its excellence in science and education. As a modern enterprise specializing in the R&D, sales, design, and manufacturing of industrial furnaces, We have been recognized by government as a high-tech enterprise, a technology-based SME, an innovative SME, and has obtained ISO international quality system certification. We have also been honored with titles such as Class A Taxpayer and Class A Contract and Creditworthy Enterprise. The company holds dozens of utility model patents, invention patents, and copyrights. In the field of industrial furnaces, Tailord has established long-term, stable partnerships with hundreds of leading global enterprises, universities, and research institutions, thanks to its profound technological expertise and leading market share.

FAQ

Q1. Is Tailord a Furnace manufacturer or trading agent?

A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.

Q2. What kind of furnaces do you have?

A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.

Q3. What about the lead time?

A: 60-90 days for furnace production.

Q4. Do you have any MOQ limit for furnace order?

A: Low MOQ, 1 unit is available.

Q5. How do you ship the goods and how long does it take to arrive?

A:  Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.

Q5. How to proceed an order for furnace?

A: Firstly, let us know your detailed requirements or application.

Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.

Thirdly, customer confirms the contact and places deposit for formal order.

Lastly, we arrange the production.

Q7: Do you offer guarantee for the furnaces?

A: Yes, we offer 1 year warranty after the final acceptance.

Q8: Could offer on-site installation and commission?

A: According to the specific furnace model, we will offer on-line support or on-site service.
