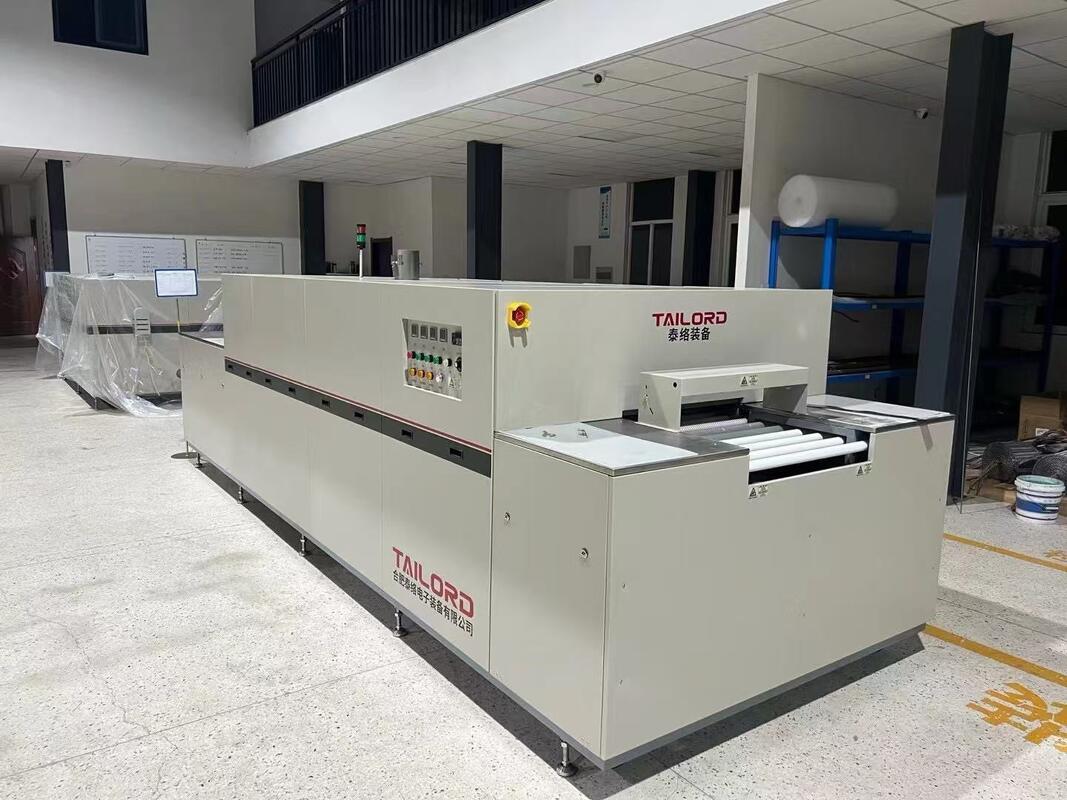

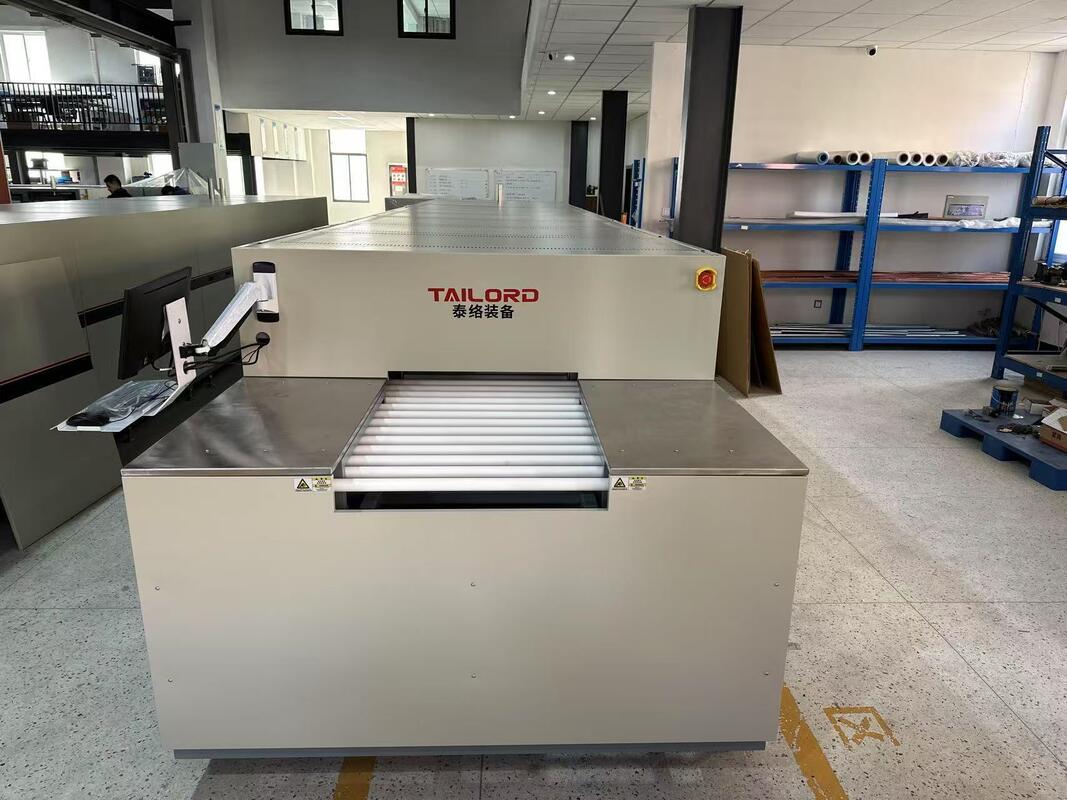

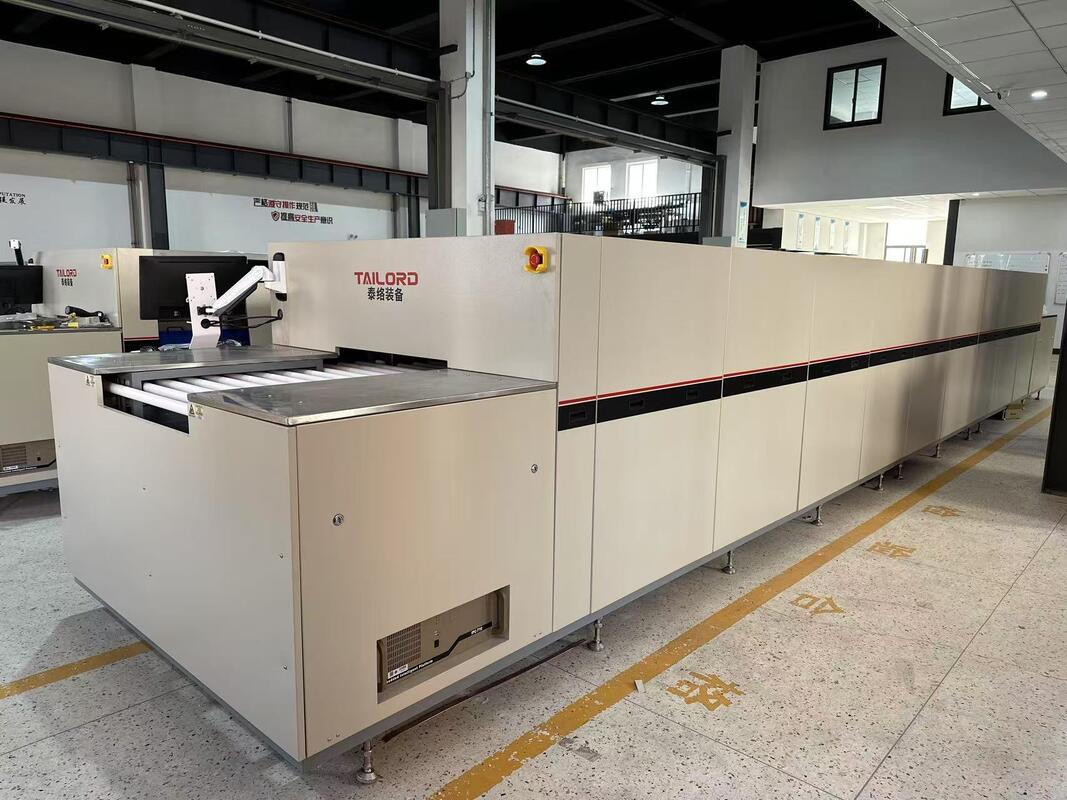

Continuous Roller Hearth Annealing Furnace Heat Treatment

The Critical First Step to Flawless Circuits: Precision Organic Removal with Zero Contamination

Before a ceramic substrate can become the robust foundation for precision printhead circuitry, it must first undergo the delicate debinding process. The removal of organic binders and plasticizers is a stage where defects are born if not mastered. Tailord's High-Cleanliness Roller Hearth Debinding Furnaces are engineered to execute this critical first step with uncompromising precision. We provide the gentle, controlled heating and pristine atmosphere essential for completely evacuating organics without blistering, cracking, or leaving behind carbon residue, ensuring a perfectly prepared "brown" body for subsequent high-temperature sintering.

Key Applications & Process Advantages for Alumina Substrate Debinding:

1. Controlled, Multi-Stage Thermal Decomposition: Our furnaces feature meticulously designed low-temperature zones with precise ramp rates. This allows for the gradual and sequential volatilization and breakdown of different organic components (e.g., PVA, acrylics, plasticizers), preventing rapid gas generation that causes internal pressure build-up and defects.

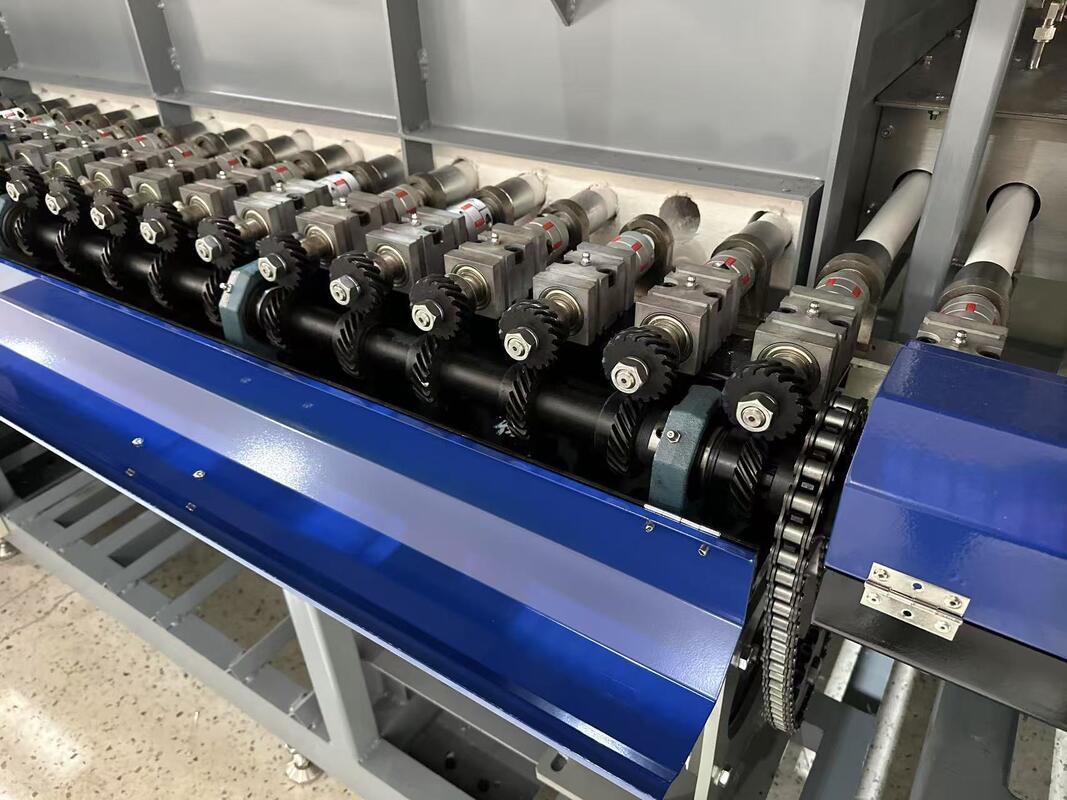

2. Ultra-Clean, Particle-Free Environment: The roller hearth transport system eliminates contact with the substrate's top surface, and the furnace is built to Class 1000 (or better) cleanliness standards. This prevents any particulate contamination from settling on the sticky, binder-rich "green" substrate surface, which is crucial for achieving defect-free circuits after metallization.

3. Optimized Airflow and Exhaust for Complete Byproduct Removal: The furnace is equipped with a powerful and precisely balanced exhaust system. This ensures that all gaseous and condensable organic byproducts are efficiently evacuated from the chamber, preventing their re-deposition on cooler parts of the substrate or the furnace interior, which could lead to carbon spots or contamination.

4. Prevention of Blistering, Cracking, and Delamination: The gentle and uniform heating profile, combined with the full support of the rollers, minimizes thermal stress within the fragile green ceramic tape. This is critical for preventing warping, micro-cracking, or the formation of internal blisters that would render the substrate useless.

5. Zero Carbon Residue for Superior Metallization: The combination of optimal temperature profile and sufficient oxygen ingress in the airflow ensures the complete burnout of organics into CO₂ and H₂O, leaving no carbonaceous residue behind. A carbon-free surface is mandatory for achieving excellent adhesion and conductivity in subsequent thick-film printing and firing.

6. High-Volume Throughput for Electronics Manufacturing: Designed for continuous 24/7 operation, our Roller Hearth Debinding Furnaces seamlessly integrate into automated production lines for printer engines, supporting the high-volume demands of the global office automation and industrial printing markets.

7. Superior Temperature Uniformity for Process Consistency (±3°C): Exceptional temperature uniformity across the entire roller width guarantees that every part of every substrate undergoes identical debinding. This eliminates under-fired or over-fired areas, ensuring consistent mechanical strength and preparation quality across the entire production batch.

8. Minimized Substrate Warpage and Distortion: The uniform heating from both top and bottom, coupled with the continuous support of the rollers, prevents sagging or warping of large, thin ceramic tape during the critical phase when binders are softening and decomposing.

9. Robust Atmosphere Management: The process typically uses clean, dried air with precisely controlled flow rates. This provides the necessary oxygen for oxidative decomposition of the organics while maintaining the cleanroom integrity of the process chamber.

10. Foundational for Yield and Final Circuit Performance: A perfectly debound substrate is the non-negotiable foundation for high yields in downstream processes. By eliminating defects at this initial stage, our technology directly contributes to the production of reliable, high-performance printer components with consistent electrical properties.

Partner with Tailord to build your process on a flawless foundation. Our debinding solutions ensure your ceramic substrates begin their journey with the purity and integrity required for the most demanding electronic applications.

• Settters
• Profiling test thermocouple
• Exhaust gas treatment system
• UPS Power Supply
