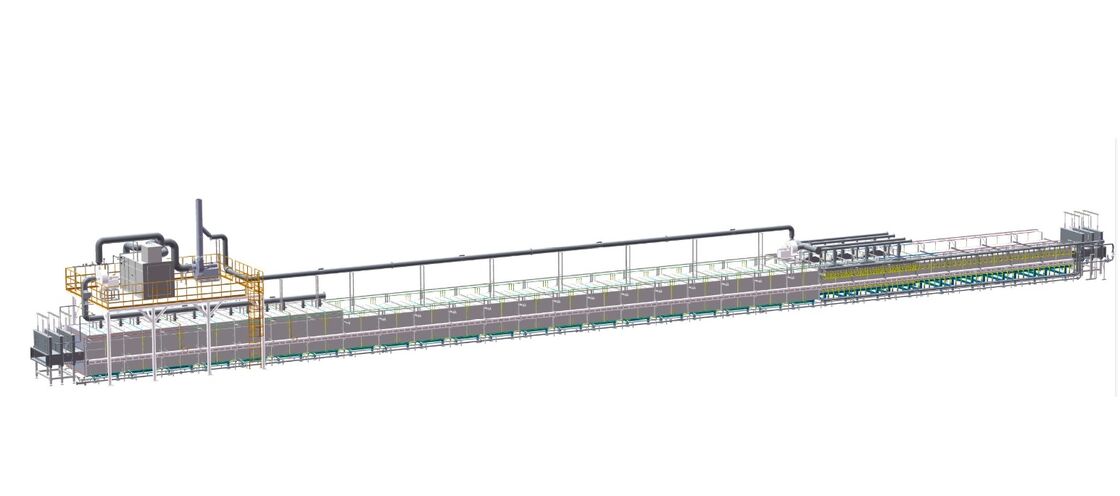

Controlled Atmosphere Hearth Continuous Roller Furnaces Heat Treating Equipment

This equipment is designed for the sintering and heat treatment processes of magnetic materials in a nitrogen atmosphere.

 I. Technical Specifications and Basic Configuration
- **Product Model**: TLG9080-1509ZN Controlled  Atmosphere Roller Hearth Furnace
- **Rated Temperature**: 810°C; **Maximum Temperature**: 900°C
- **Effective Load Height**: 80mm
- **Sagger Size**: 290*290*35Hmm, 600*300*35Hmm (3 columns × 2 layers)
- **Circulation Line**: Single-loop structure
- **Drive Method**: The drive side is powered by a motor through sprockets and helical gears. Each motor unit can achieve forward and reverse rotation.
- **Drive Speed**: IN-OUT 6.5 hours (adjustable drive speed range: approximately 3.5～15 hours)
- **Roller Material**: Stainless steel (SUS310S for >700°C; SUS304 for ≤700°C)
- **Roller Specifications**: Φ42mm×2250mm
- **Snake Control**: Front-rear deviation ≤±40mm, left-right deviation ≤±30mm
- **Heating Elements**: Quartz tubes with heating wires
- **Sintering Atmosphere**: Nitrogen
- **Atmosphere Control**: One gas exchange chamber at each furnace entrance and exit
- **Oxygen Content Control**: ≤30ppm (no-load, gas source purity 99.999%)
- **Gas Circuit Composition**: 20 paths (5 paths with a range of 1-10 Nm³/hr; 15 paths with a range of 3-30 Nm³/hr)
- **Exhaust System**: Direct connection, 11 paths, equipped with centrifugal fans
- **Temperature Zone Structure Division**:
  - Heating Section: 16390mm
  - Insulation Section: 4470mm
  - Cooling Section: 8940mm
- **Temperature Control Stability**: ±1°C (based on instrument display)
- **Furnace Temperature Uniformity**: ±5°C (no-load, cross-section of the constant temperature zone)
- **Number of Temperature Zones**: 15
- **Number of Temperature Control Points**: 30 (2 points per zone, upper and lower, independently controlled)
- **Number of Temperature Measurement Points**: 18 (1 point per zone, middle position)
- **Furnace Pressure Test Ports**: 18
- **Thermocouple**: Type N
- **Alarm and Protection**: Audible and visual alarms for furnace overtemperature, main drive abnormality, sagger jamming, abnormal air pressure, fan overload, etc.
- **Equipment Surface Temperature Rise**: <60°C
- **Outlet Material Surface Temperature**: <150°C
- **Maximum Heating Power**: 430kW
- **Typical Insulation Power**: ≤240kW
- **Inlet Gas Pressure**: 0.2-0.4Mpa
- **Power Supply**: 3-phase 5-wire, 380/220VAC, 50Hz
- **Reference Dimensions**: Approximately 2800W×5000H×35000Lmm (including entrance and exit, excluding control cabinet)
- **Equipment Appearance**: High-temperature water-based paint, color code RAL9002
