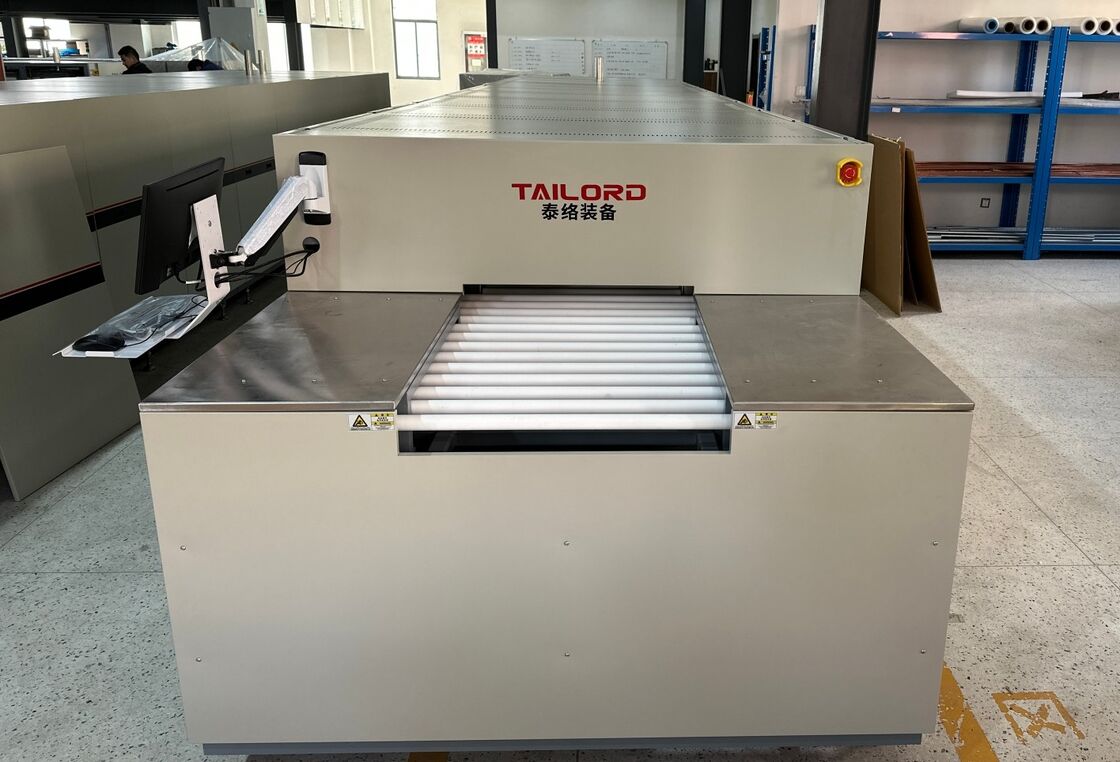

635mm Alumina Ceramic Continuous Roller Hearth Furnace For Drying 30kW

I.Furnace Model:

TLG6005-0403 Roller Hearth Drying Furnace

II. Technical Specifications and Basic Configuration:
This equipment is primarily suitable for drying and curing electronic products, as well as for drying organic solvents on metal surfaces.

Details are as follows:

2.1 **Rated Temperature**: 250°C; **Maximum Temperature**: 350°C
2.2 **Effective Height**: 50mm
2.3 **Effective Roller Width**: 635mm
2.4 **Roller Material**: Alumina ceramic
2.5 **Roller Diameter**: φ35mm
2.6 **Center Distance Between Adjacent Rollers**: 88mm
2.7 **Size Requirements for Carrying Ceramic Sheets or Sintered Ceramic Products**: Length >360mm, Width >100mm
2.8 **Speed Adjustment Range**: 50mm-450mm/min, stepless speed regulation by frequency converter
2.9 **Heating Elements**: Single-sided heating using infrared lamps
2.10 **Furnace Structure**: Furnace inner chamber is made of full stainless steel
2.11 **Exhaust System**: One exhaust chimney in the first temperature zone (refer to Section 3.2 for technical details)
2.12 **Cooling Method**: Air cooling
2.13 **Structural Division**: (Refer to Section 3.1 for technical details)
2.14 **Temperature Control Stability**: ±1°C
2.15 **Furnace Temperature Uniformity**: ±5°C
2.16 **Number of Temperature Zones**: 4
2.17 **Number of Temperature Control Points**: 4
2.18 **Maximum Load**: ≤20kg per single roller
2.19 **Transmission System**: Continuous roller hearth transmission
2.20 **Thermocouple**: K-type
2.21 **Emergency Stop Button**: One emergency stop button on each end plate at the entrance and exit
2.22 **Alarm Indicators**: Audible and visual alarms for overtemperature, thermocouple break, etc.
2.23 **Surface Temperature Rise**: <35°C
2.24 **Heating Power**: 30kW
2.25 **No-load Insulation Power**: ≤10kW
2.26 **Weight**: Approximately 2000kg
2.27 **Dimensions**: 5110×1800×1450 mm (L×W×H), excluding (feet, chimney, indicator lights)
2.28 **Appearance Color**: Panels are coated with high-temperature spray paint in camel gray (color code: RAL7035). No logos are hung or painted.
