Achieving Robust Metallization: The Key to Superior Bond Strength and Solderability

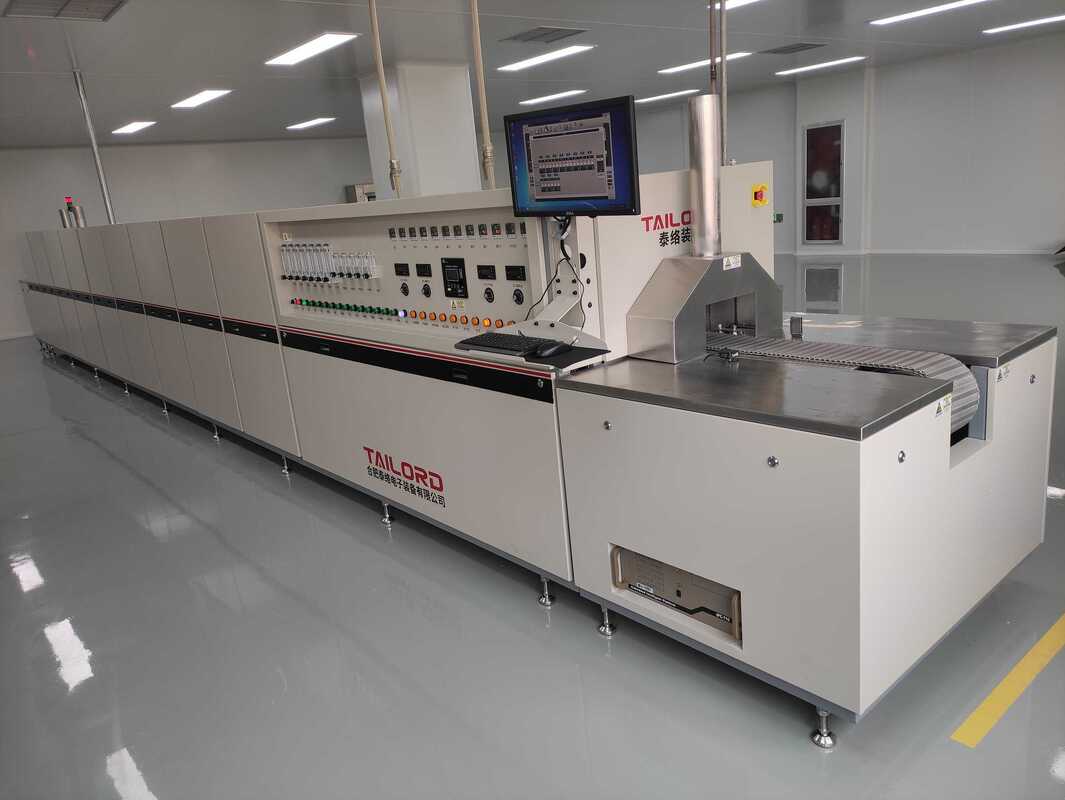

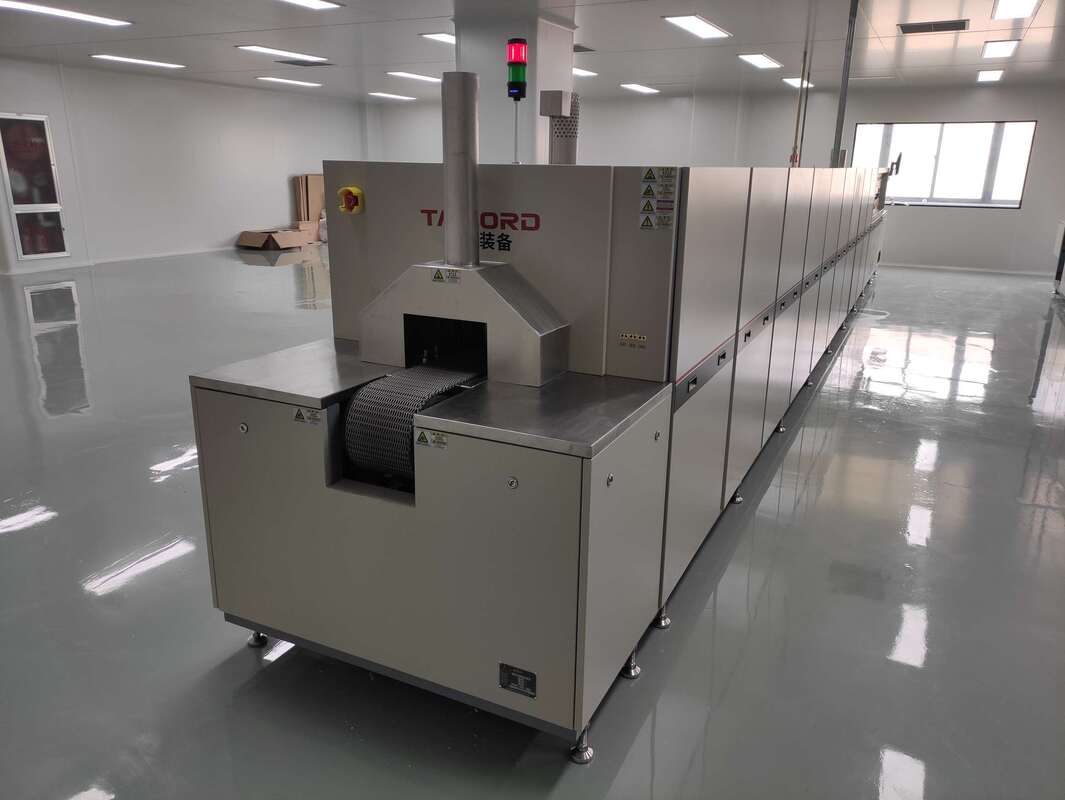

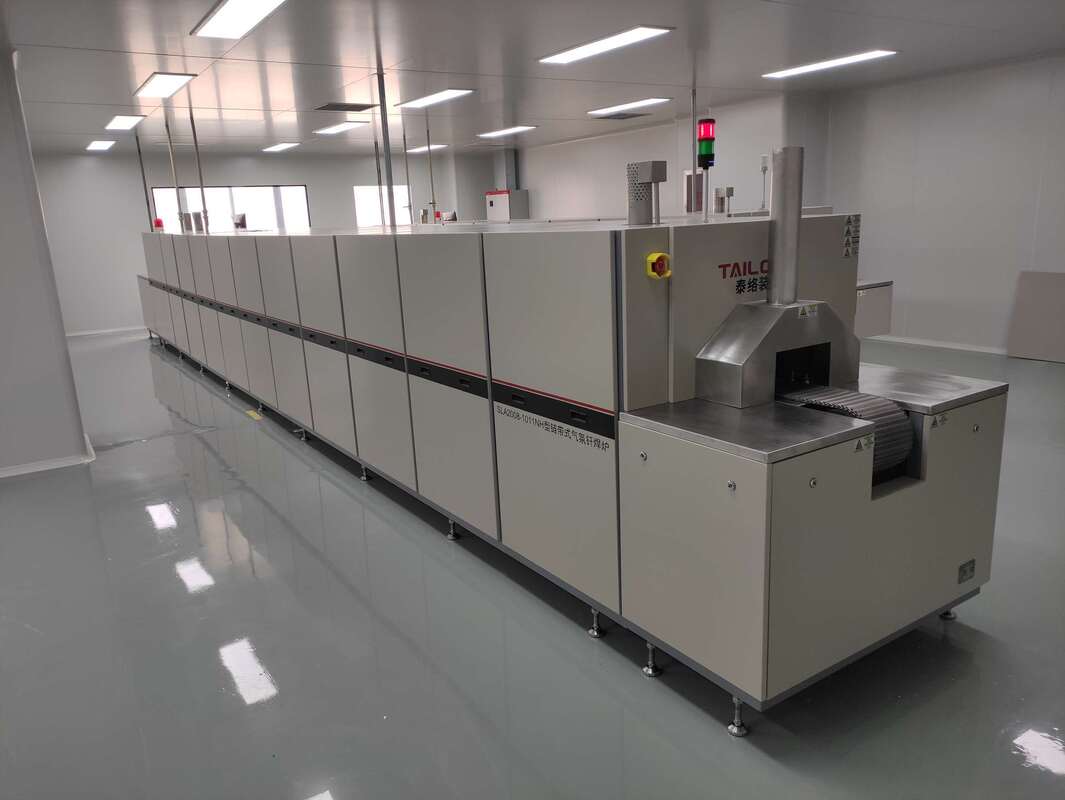

The performance and longevity of a ceramic circuit substrate hinge on the quality of its surface metallization. Electroless nickel plating provides an excellent foundation, but its full potential is only unlocked through a carefully controlled heat treatment. Tailord's Nitrogen-Hydrogen Atmosphere Mesh Belt Furnaces are precision-engineered for this critical post-plating process. We deliver the perfect combination of a reducing atmosphere and uniform thermal profile to transform the as-plated Ni-P layer into a strongly bonded, highly reliable, and readily solderable interface, ready for subsequent die-attach, wire bonding, or component soldering.

Key Applications & Process Advantages for Ceramic Substrate Nickel Annealing:

1. Crystallization of the Amorphous Ni-P Layer: The as-deposited electroless nickel is amorphous. Our controlled thermal cycle precisely drives the crystallization process, forming a stable Ni₃P phase and nickel crystallites. This transformation is fundamental to achieving a stable, predictable metallization with consistent mechanical and electrical properties.

2. Enhanced Adhesion to the Ceramic Substrate: The heat treatment promotes inter-diffusion and the formation of a strong chemical bond at the critical nickel-ceramic (e.g., Al₂O₃, AlN) interface. This dramatically improves peel strength, ensuring the metallization withstands subsequent thermal cycling and mechanical stress without delamination.

3. Optimization for Die-Attach and Solderability: The process creates a clean, oxide-free, and homogeneous nickel surface. This is ideal for forming strong, void-free solder joints during component assembly and provides an excellent surface for epoxy or sintered silver die attachment, which is critical for power module reliability.

4. Stress Relief in the Plated Layer: The carefully designed heating and cooling profile effectively relieves intrinsic stresses generated during the electroless plating process. This prevents warping of thin substrates and minimizes the risk of micro-cracking in the nickel layer, which could lead to premature failure.

5. Powerful Oxide Reduction for a Pristine Surface: The hydrogen component in the N₂-H₂ atmosphere acts as a powerful reducing agent, ensuring that the nickel surface remains completely free of oxides throughout the entire heat treatment cycle. This is paramount for achieving perfect wetting during subsequent soldering or brazing operations.

6. High-Volume Processing for Power Electronics: Designed for 24/7 continuous operation, our Mesh Belt Furnaces are ideal for the mass production of Direct Bonded Copper (DBC) or Active Metal Brazed (AMB) substrates that require final nickel finishing, meeting the high-throughput demands of the EV and renewable energy industries.

7. Exceptional Temperature Uniformity for Consistency: With a guaranteed temperature uniformity of ±3°C across the belt, every area of every substrate receives identical thermal treatment. This ensures consistent adhesion, phase structure, and solderability across the entire production batch.

8. Prevention of Phosphorus Segregation and "Purple Plague": A precisely controlled temperature and time profile is crucial to prevent the excessive segregation of phosphorus to the surface, which can form brittle phosphides (a phenomenon sometimes called "purple plague") and degrade bond strength and solder joint reliability.

9. Tailored Atmosphere for Phosphorus Management: The N₂-H₂ ratio can be optimized to manage the surface chemistry. A slightly oxidizing component can sometimes be introduced to lightly oxidize any segregated phosphorus, preventing its detrimental effects, while hydrogen ensures the nickel itself remains reduced.

10. Creating a Diffusion Barrier: The properly heat-treated nickel layer acts as an effective diffusion barrier between the copper layer (in DBC substrates) and the solder, preventing the formation of brittle copper-tin intermetallics that can compromise joint integrity over time and under high-temperature operation.

Partner with Tailord to build the foundation of your power and high-frequency circuits. Our heat treatment solutions transform a simple plated layer into a robust, high-performance metallization that ensures the long-term reliability of your most demanding electronic systems.

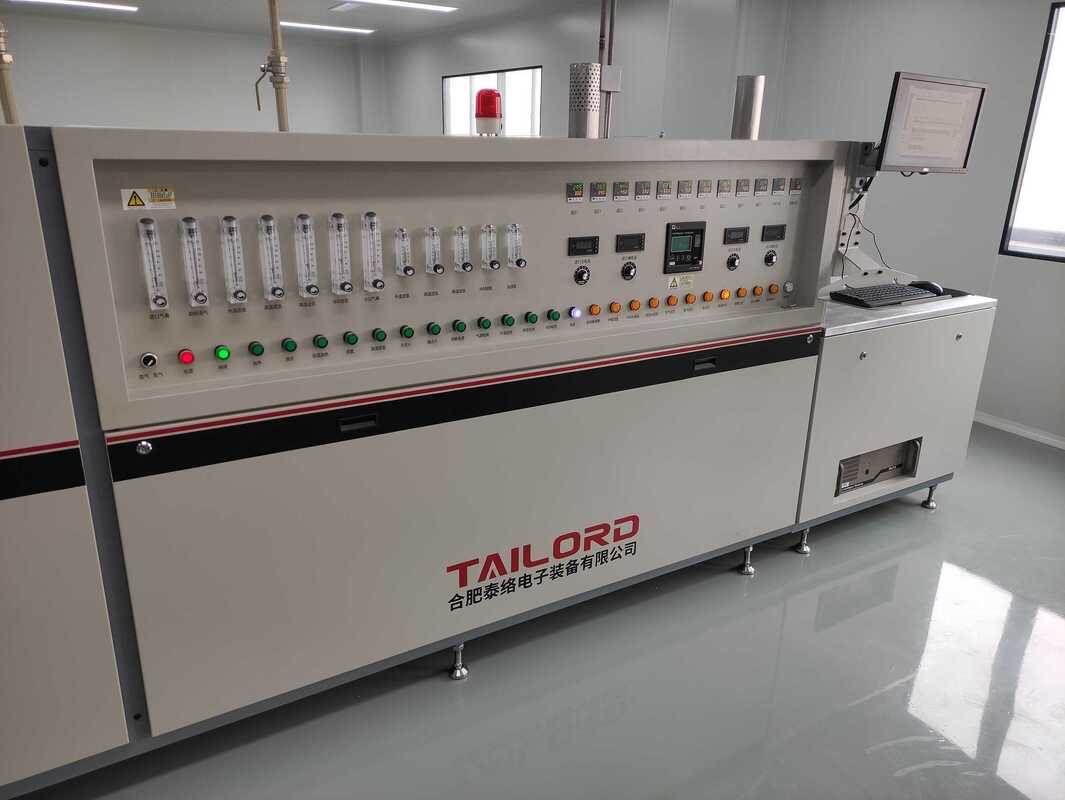

• Industrial PC integrated control system
• Ultrasonic mesh belt cleaning system
• Profiling test thermocouple
• Exhaust gas treatment system
• UPS Power Supply
• Industrial chiller
