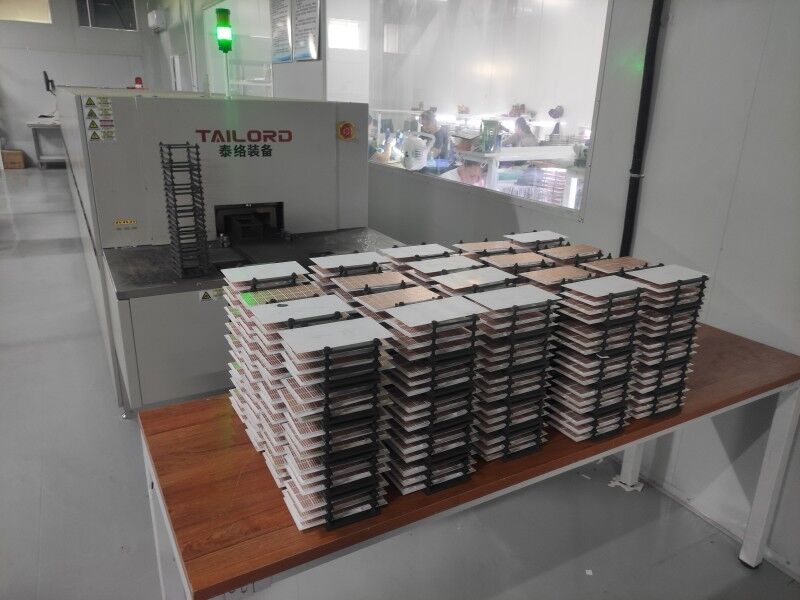

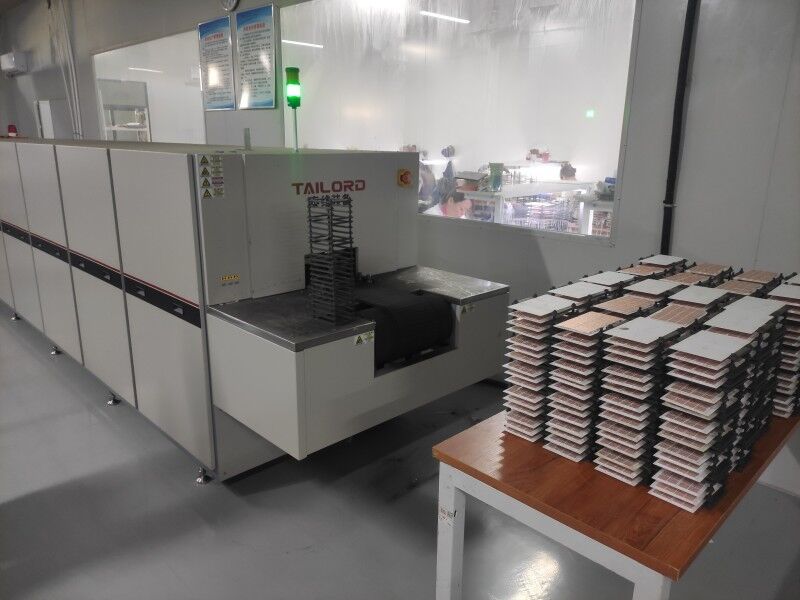

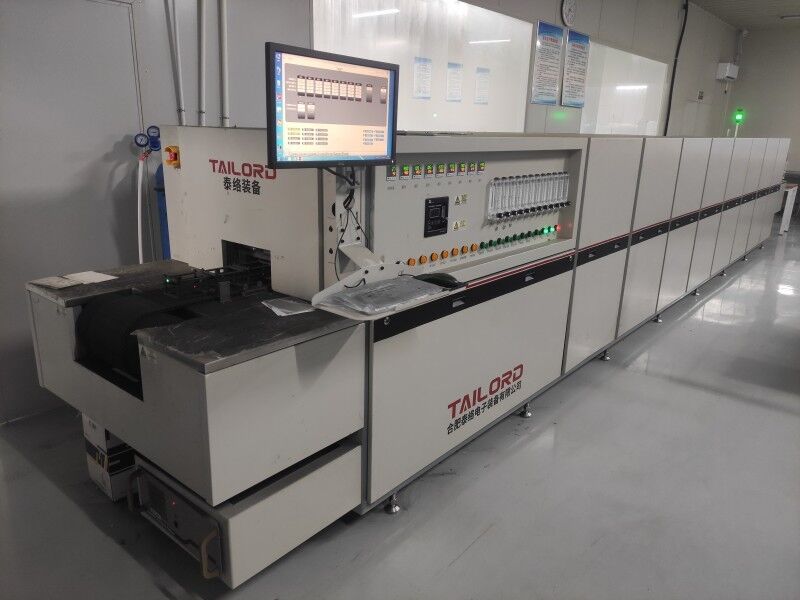

Mesh Belt Controlled Atmosphere Furnace For Thermoelectric Cooler TEC Oxidation

Precision Oxidation for Unmatched Interfacial Stability and Long-Term Performance

The heart of a reliable Thermoelectric Cooler (TEC) lies in the stability of its electrical and thermal interfaces. A precisely controlled oxidation process is paramount to forming a stable, adherent, and electrically insulating layer on the alumina ceramic substrates. Tailord's Atmosphere Mesh Belt Oxidation Furnaces are engineered to deliver this critical step with unmatched consistency, creating the ideal foundation for robust electrode bonding and ensuring the TEC's performance and longevity under rigorous thermal cycling.

Key Applications & Process Advantages for TEC Substrate Oxidation:

1. Formation of Stable α-Alumina Phase: Our furnaces provide the precise temperature profile and atmosphere required to promote the formation of a stable, well-adhered alpha-phase alumina oxide layer on the substrate surface. This phase is crucial for its excellent electrical insulation and long-term stability at high temperatures.

2. Optimized for High-Volume TEC Production: Designed for 24/7 continuous operation, our Mesh Belt Furnaces seamlessly integrate into automated TEC production lines. This enables high-throughput processing of thousands of ceramic substrates, meeting the massive demand of the consumer electronics, automotive, and medical device markets.

3. Controlled Oxygen Partial Pressure: We maintain a precisely controlled air or oxygen-enriched atmosphere with optimal flow dynamics. This ensures a consistent and uniform oxide layer thickness across every substrate, which is critical for achieving predictable and uniform electrical insulation performance.

4. Exceptional Temperature Uniformity for Layer Consistency: With a guaranteed temperature uniformity of ±3°C across the entire belt, we ensure that every square centimeter of every substrate undergoes identical oxidation. This eliminates performance variations and is fundamental to achieving high production yield and reliability.

5. Enhanced Electrode Adhesion and Solderability: The meticulously grown oxide layer provides an ideal surface morphology for the subsequent metallization process (e.g., thick-film printing). This significantly enhances the adhesion strength of the electrodes and improves the quality of solder joints for external connections.

6. Superior Electrical Insulation at High Temperatures: The high-quality oxide layer acts as a robust electrical barrier, preventing current leakage between the semiconductor pellets and the metalized electrodes, even under the significant temperature gradients experienced during TEC operation.

7. Minimized Thermal Resistance at the Interface: A uniform and well-controlled oxide thickness helps minimize the thermal resistance at the critical substrate-to-pellet interface. This is vital for maximizing the heat pumping efficiency and overall Coefficient of Performance (COP) of the TEC.

8. Prevention of Ionic Contamination: The clean process environment and high-purity alumina substrates prevent the introduction of ionic contaminants during oxidation. This safeguards the long-term reliability of the TEC by mitigating potential electrochemical migration and failure mechanisms.

9. Tailored Thermal Profile for Stress Management: The carefully engineered ramp-up and cool-down rates minimize thermal stress within the ceramic substrate, preventing warping or micro-cracking that could compromise the structural integrity of the final TEC assembly.

10. Foundation for Long-Term Reliability: A perfectly executed oxidation process is the first and most critical step in building a TEC that can withstand thousands of thermal cycles without degradation. It directly contributes to stable contact resistance and sustained cooling performance over the device's entire operational life.

Partner with Tailord to build the foundation of efficient and reliable thermal management. Our oxidation furnaces provide the precise surface engineering required for TECs that deliver consistent cooling power and endurance in your most critical applications.

• Industrial PC integrated control system
• Ultrasonic mesh belt cleaning system
• Profiling test thermocouple
• Exhaust gas treatment system
• UPS Power Supply
• Industrial chiller
