Place of Origin:
Hefei, China
Brand Name:
Tailord
Certification:
ISO9001:2015
Model Number:
SLK4005-0711Z
Precision Firing for Peak Performance
In the production of Metal Glaze Resistors, the firing process is where the core functionality is born. Tailord's Mesh Belt Furnaces are engineered to transform the applied glaze formulation into a hard, stable, and conductive film with exceptional precision and repeatability. Our furnaces deliver the critical combination of temperature profile and atmosphere control required to achieve optimal TCR (Temperature Coefficient of Resistance), long-term stability, and precise ohmic values.
Key Applications & Process Advantages for MGR Manufacturing:
Precise Ohmic Value Formation: The uniform and consistent thermal profile across the entire belt width ensures that every resistor sinters under identical conditions. This directly translates to tight tolerance control and batch-to-batch consistency in achieving target ohmic values.

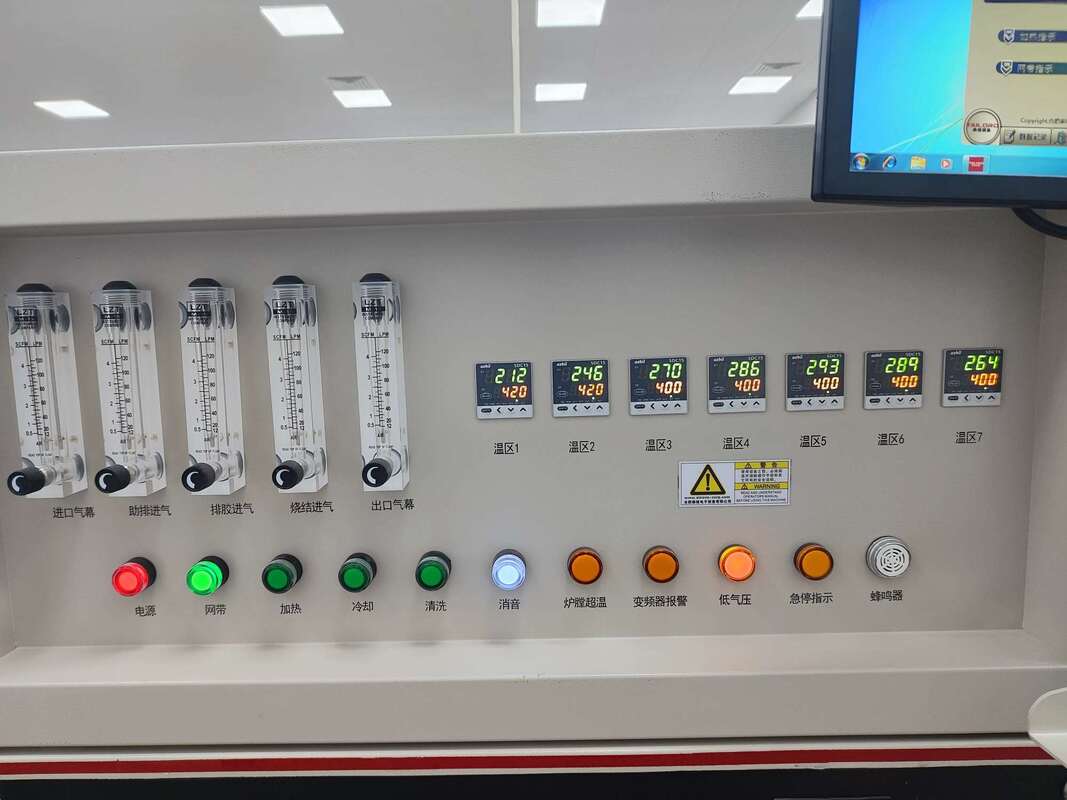

Optimized TCR Performance: The glaze's TCR is critically dependent on the firing curve. Our multi-zone heating and cooling systems allow for meticulous profile tuning, enabling you to develop and maintain resistors with exceptionally low and predictable TCR characteristics.
Superior Film Adhesion & Integrity: The controlled ramp-up and cooldown rates prevent thermal shock, which can cause micro-cracks or delamination. This results in a robust glaze film that is perfectly bonded to the ceramic substrate, ensuring reliability under mechanical and thermal stress.
High-Volume, Continuous Production: Designed for 24/7 operation, our Mesh Belt Furnaces are the backbone of high-volume MGR production lines. They offer unparalleled throughput efficiency, seamlessly integrating with upstream printing and downstream marking/coating processes.
Atmosphere Purity for Stability: Even minor oxidation can degrade performance. Our furnaces provide excellent atmosphere sealing, typically using clean air or nitrogen, to prevent contamination and ensure the electrical properties of the glaze remain stable over the resistor's lifetime.
Exceptional Temperature Uniformity: With advanced heating elements and airflow design, we guarantee a temperature uniformity of ±3°C or better. This eliminates "hot spots" and ensures every resistor on the belt, from center to edge, is fired to perfection.
Gentle & Contamination-Free Handling: The smooth, continuous movement of the mesh belt prevents resistor chips from tipping or clashing. The use of high-purity ceramic mesh belts minimizes the risk of particulate contamination that could cause short circuits or performance variations.
Rapid Process Optimization: The flexibility to independently control each zone allows for rapid development and fine-tuning of firing profiles for new MGR formulations, accelerating your time-to-market for new products.
Energy-Efficient Operation: Tailord's energy-saving insulation and recuperation systems significantly reduce operational costs, lowering the cost per unit in your high-volume production.
Maximized Yield & Reduced Scrap: By providing unmatched process control and repeatability, our Mesh Belt Furnaces drastically minimize variations and defects, directly increasing your yield and boosting your bottom line.
Partner with Tailord to energize your MGR production with reliability, precision, and efficiency.
FAQ
Q1. Is Tailord a Furnace manufacturer or trading agent?
A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.
Q2. What kind of furnaces do you have?
A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.
Q3. What about the lead time?
A: 60-90 days for furnace production.
Q4. Do you have any MOQ limit for furnace order?
A: Low MOQ, 1 unit is available.
Q5. How do you ship the goods and how long does it take to arrive?
A: Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.
Q5. How to proceed an order for furnace?
A: Firstly, let us know your detailed requirements or application.
Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.
Thirdly, customer confirms the contact and places deposit for formal order.
Lastly, we arrange the production.
Q7: Do you offer guarantee for the furnaces?
A: Yes, we offer 1 year warranty after the final acceptance.
Q8: Could offer on-site installation and commission?
A: According to the specific furnace model, we will offer on-line support or on-site service.
