Solution Treatment Mesh Belt Furnace Aluminum Parts 530C 48kW Water Quench

The SLU solution treatment mesh belt furnace provides a continuous heat treatment route for aluminum alloy components requiring solution treatment as the first stage of a T6 temper. A 500mm wide stainless steel mesh belt transports the parts through five controlled heating zones to a working temperature of 530C, holding them long enough to dissolve the alloying elements into solid solution, before a closely integrated water quench arrests the microstructure. Precise temperature control with plusmn 3C uniformity and a short, reliable transfer to the quench are critical to achieving the required mechanical properties, and this furnace is designed to deliver both consistently in a continuous production format. It is well suited to aluminum castings and forgings produced in volume.

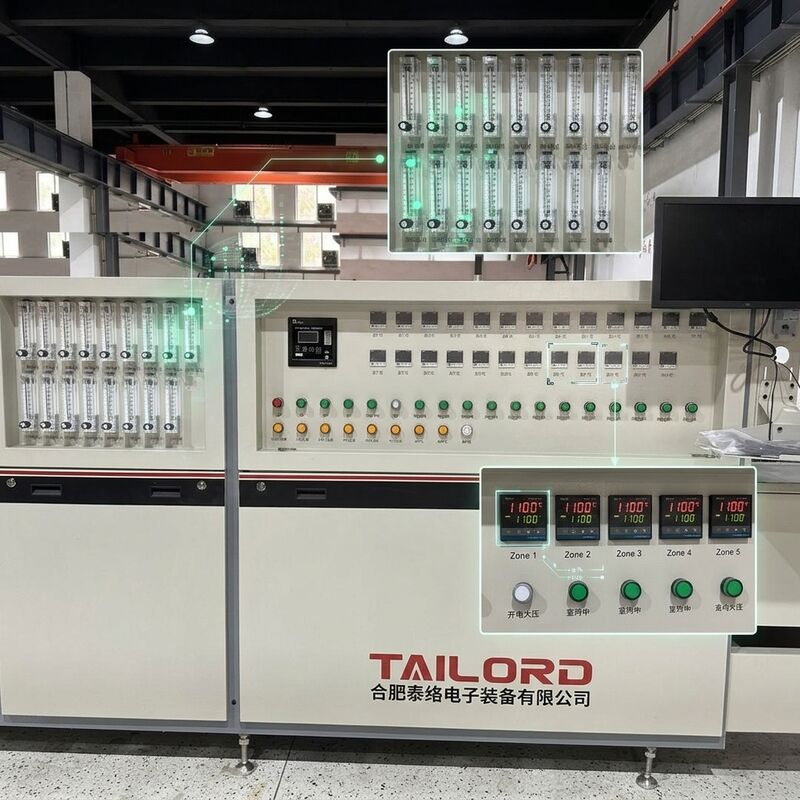

• Precise 530C Solution Control: Five heating zones with independent PID control maintain plusmn 3C uniformity, dissolving alloying elements fully while avoiding over heating or incipient melting of the aluminum substrate.
• Integrated Water Quench: A close coupled water quench immediately follows the hot zone, delivering a rapid, uniform quench that locks in the supersaturated solid solution for optimum age hardening response.
• High Temperature Stainless Belt: The heat resistant stainless steel mesh belt withstands continuous operation at solution temperatures while carrying aluminum castings, forgings and extrusions of varied geometry.
• Optimized Residence Time: The inverter controlled belt from 50mm to 300mm per minute lets operators set the exact solution time required by the alloy and the part thickness for full dissolution.
• Accurate Cooling After Quench: Controlled handling after the quench stabilizes the parts and prepares them for the subsequent artificial aging stage without introducing distortion.
• Full Process Traceability: The PLC touch screen system stores solution treatment recipes, logs all temperature data and raises alarms on deviation, supporting quality documentation for aerospace and automotive customers.

This solution treatment mesh belt furnace is used for the T6 solution treatment of aluminum alloy castings, forgings and extruded components, including automotive suspension and steering parts, wheel hubs, structural brackets, pump and compressor housings and electrical hardware. It supports alloys such as 6061, 6063, 6082 and various casting alloys where a solution treatment followed by quench and artificial aging delivers the required strength, hardness and dimensional stability. Manufacturers in the automotive, aerospace, electrical and general engineering sectors rely on its precise temperature control and immediate quench for consistent mechanical properties at continuous production rates.

Each furnace is fully assembled and temperature profiled at our works before shipment, and the quench section is tested for reliable transfer time and uniform cooling. The delivery includes the furnace main unit, inspection certificates for major components, a complete technical document set and spare heating modules, thermocouples and relays. The equipment is packed in reinforced wooden cases with moisture protection suited to ocean transport. Our engineers provide on site installation, commissioning and process development to match your alloy and section thickness, and the furnace carries a defined warranty and dependable service.

Please provide the alloy, the part dimensions and section thickness, the required mechanical properties and the target throughput, and we will confirm the zone configuration, belt speed, quench design and heating power. We will then prepare a technical proposal, general arrangement drawing and commercial quotation. Minimum order quantity is one unit, payment terms are T/T or L/C, and typical delivery is 80 to 110 days. Contact our heat treatment engineers today for a solution treatment solution designed for your aluminum components.
