Place of Origin:
Hefei, China
Brand Name:
Tailord
Certification:
ISO9001:2015
Model Number:
SLF3005-0302

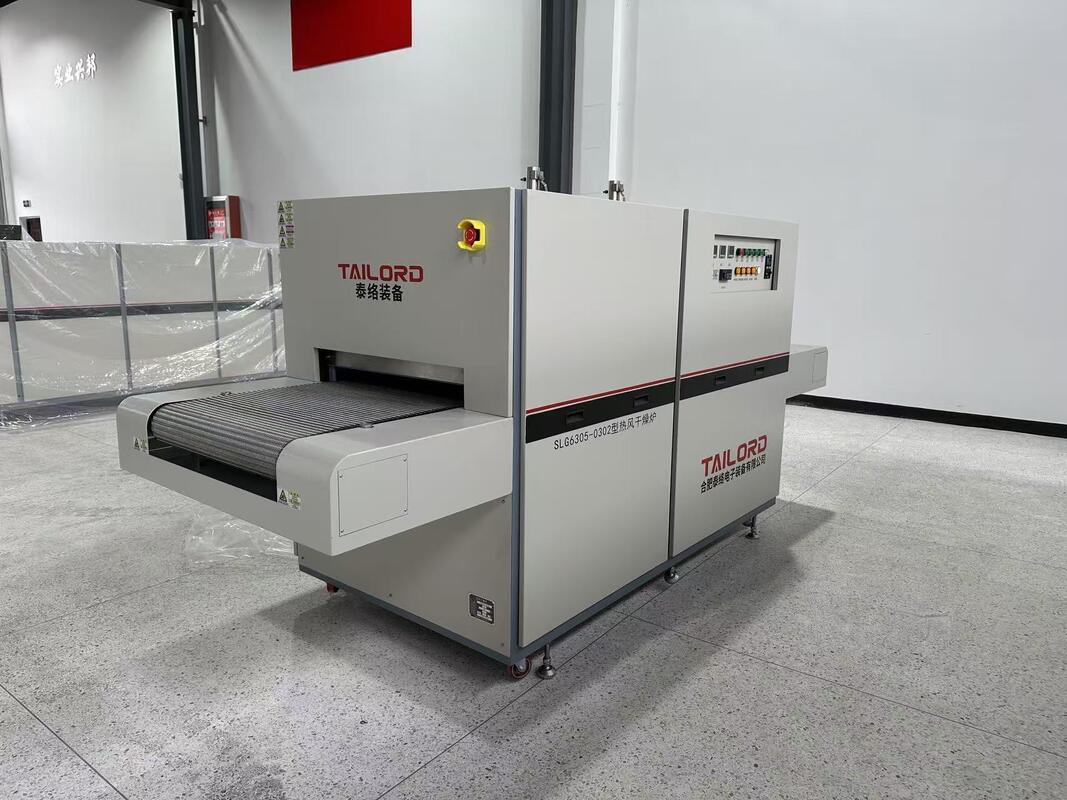

Used for low-temperature drying and curing processes of electronic components, electrodes, etc.
|
Item |
Parameter |
|
Rated Temperature |
200℃ |
|
Maximum Temperature |
250℃ |
|
Effective Height |
50 mm |
|
Conveyor Belt Width |
300 mm |
|
Conveyor Belt Material |
High-Temperature-Resistant Nichrome Alloy |
|
Maximum Load |
20 kg/m² (excluding conveyor belt self-weight) |
|
Transmission System |
Large-Wrap-Angle Friction Drive |
|
Speed Range |
40–300 mm/min (Variable Frequency Inverter Drive) |
|
Heating Element |
Nichrome Heating Wire |
|
Heating Method |
Hot Air Circulation Upper Heating |
|
Furnace Atmosphere |
Air |
|
Exhaust System |
Exhaust Chimney Between Every Two Heating Chambers |
|
Cooling Method |
Air Cooling |
|
Structural Division |
(Refer to Section 3.1 Technical Description) |
|
Temperature Control Stability |
±1℃ |
|
Temperature Uniformity |
±3℃ |
|
Number of Temperature Zones |
3 |
|
Temperature Control Points |
3 |
|
Thermocouple |
Type K |
|
Heating Rate |
≤15℃/min |
|
Surface Temperature Rise |
<35℃ |
|
Heating Power |
9 kW |
|
Insulation Powe |
≤4 kW |
|
Power Supply |
>13 kVA, 3-Phase 5-Wire, 220/380 VAC, 50 Hz |
|
Weight |
Approx. 500 kg |
|
Dimensions |
3340×900×1350 mm (L×W×H), excluding chimney and indicator lights |
1. Temperature Measurement: Independent K-Type Thermocouples at each control point.
2. Control Instrument: Imported Intelligent Regulator with PID Auto-Tuning, Over-Temperature Alarm, and Thermocouple Failure Indicator.
3. Heating Control: Activated only after hot air circulation starts. Multiple AC contactors for phased power supply to reduce grid impact.
4. Control Method: Solid-State Relay Zero-Crossing Trigger.
5. Over-Temperature Protection: Audible/Visual Alarm + Automatic Heating Cut-off upon Over-Temperature.
1. Environmental: 0–40℃, ≤80% RH, Non-Corrosive Gas, No Strong Airflow.
2. Ventilation: ≥40 m³/h Exhaust Capacity.
3. Floor Loading: >500 kg/m², Level and Stable.
4. Power Supply: Dedicated 3-Phase 5-Wire 220/380 VAC, 50 Hz (Do Not Share Circuit with High-Power Equipment).
5. Site Area: ≥10 m² (5000×2000×3000 mm).
FAQ
Q1. Is Tailord a Furnace manufacturer or trading agent?
A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.
Q2. What kind of furnaces do you have?
A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.
Q3. What about the lead time?
A: 60-90 days for furnace production.
Q4. Do you have any MOQ limit for furnace order?
A: Low MOQ, 1 unit is available.
Q5. How do you ship the goods and how long does it take to arrive?
A: Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.
Q5. How to proceed an order for furnace?
A: Firstly, let us know your detailed requirements or application.
Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.
Thirdly, customer confirms the contact and places deposit for formal order.
Lastly, we arrange the production.
Q7: Do you offer guarantee for the furnaces?
A: Yes, we offer 1 year warranty after the final acceptance.
Q8: Could offer on-site installation and commission?
A: According to the specific furnace model, we will offer on-line support or on-site service.
