Continuous Mesh Belt Sintering Furnace Metal Powder Parts 950C 48kW 400mm Belt

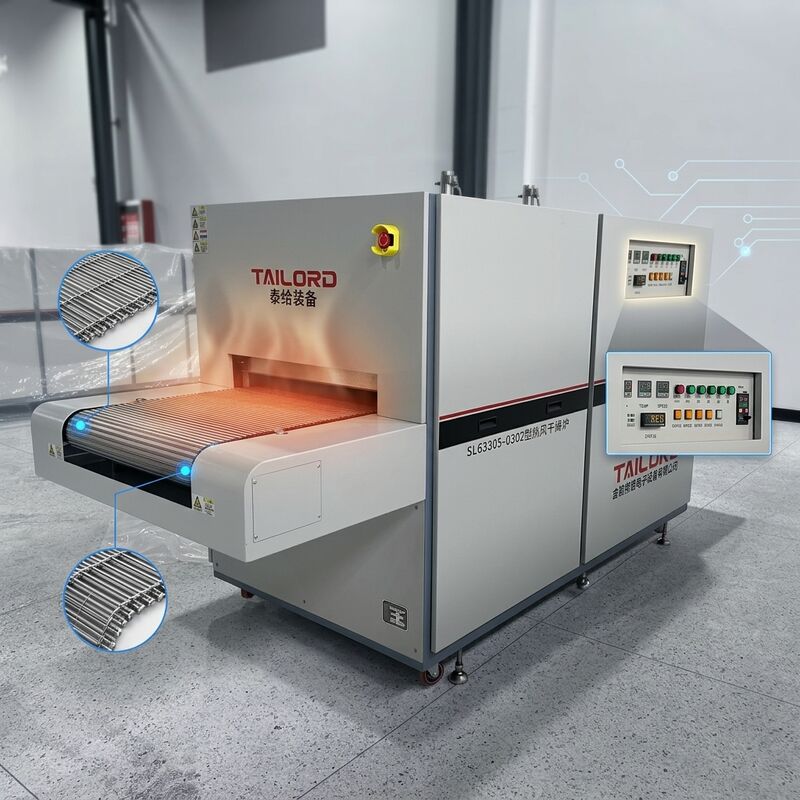

The SLK continuous mesh belt sintering furnace is engineered as a high throughput production platform for the continuous sintering of metal powder metallurgy components under a controlled air or nitrogen atmosphere. With a 400mm wide Cr20Ni80 nickel chromium alloy mesh belt and eight independently controlled temperature zones, the furnace delivers a stable 950C working temperature and holds temperature uniformity within plusmn 3C across the constant temperature zone. The equipment is positioned for manufacturers who require consistency, repeatability and measurable output rather than batch processing, and it integrates directly into automated press-sinter-sizing lines used in the powder metallurgy industry. The heavy gauge furnace body, ceramic fiber insulation modules and inverter driven friction transmission combine to reduce energy consumption while sustaining round the clock operation in demanding industrial environments.

• Continuous High Throughput Operation: The large wrap angle friction drive and variable frequency transmission allow the mesh belt to run continuously from 30mm to 250mm per minute, supporting uninterrupted mass production of sintered parts with minimal manual intervention.
• Uniform 950C Sintering Zone: Eight temperature zones with individual K type thermocouples and PID auto tuning controllers maintain furnace temperature uniformity of plusmn 3C at 950C, ensuring consistent metallurgical results across the full belt width.
• Energy Saving Ceramic Fiber Insulation: Lightweight high purity ceramic fiber heating modules reduce thermal mass and empty furnace insulation power to approximately 16kW, shortening heat up time and lowering energy cost per kilogram of production.

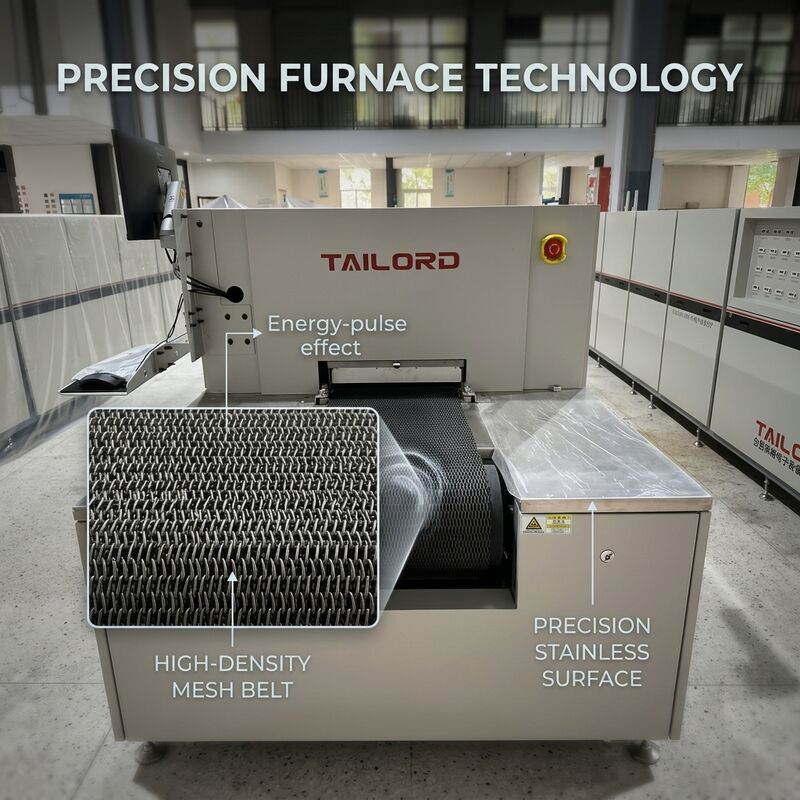

• Cr20Ni80 Nickel Chromium Mesh Belt: The 400mm wide nickel chromium woven belt resists oxidation and thermal fatigue, carrying loads up to 40kg per square meter at continuous high temperature for extended service life.

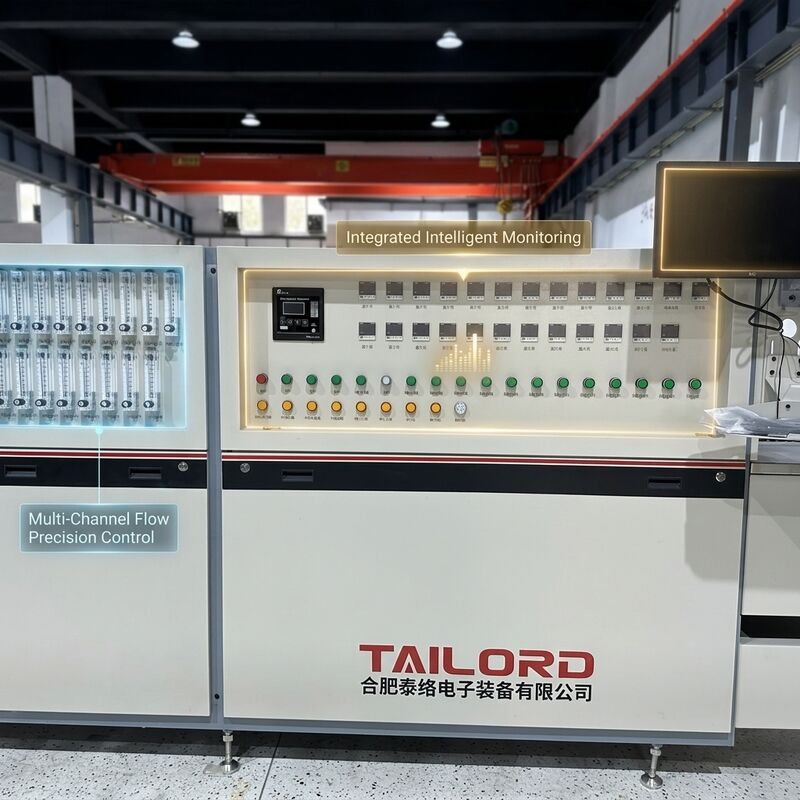

• Precise Atmosphere Control: A multi path gas circuit with individual flow meters regulates compressed air or nitrogen distribution along the furnace tunnel, preventing oxidation and controlling dew point within the sintering chamber.
• Intelligent PLC Monitoring System: A DCS based control architecture with touch screen interface provides real time temperature display, program storage, over temperature alarm, thermocouple failure diagnostics and MES communication for full traceability.

This continuous mesh belt sintering furnace is purpose built for metal powder metallurgy production, including iron base, copper base and stainless steel sintered structural parts such as bushings, bearings, gears, connecting rods and self lubricating sleeves. It is equally effective for the continuous sintering of hard alloy and ceramic metal composite blanks, the reduction annealing of metal powder, and the bright sintering of parts that must be protected from oxidation. Typical production lines in automotive component manufacturing, home appliance motor production, and general mechanical part fabrication use this configuration to combine pressing, sintering and sizing into a single automated flow. The ability to sustain 950C across a wide 400mm belt makes the furnace suitable both for medium volume job shops and for dedicated high volume production cells.

Each furnace is fabricated, pre assembled and fully temperature tested in our Hefei works before shipment, and every unit is supplied with an inspection certificate, component certificates, operation manuals and a documented technical file. Standard accessories include spare solid state relays, spare ceramic fiber heating modules and an ultrasonic mesh belt cleaning unit that removes residue from the belt openings to prevent cross contamination of workpieces. The equipment is packed in reinforced wooden cases with moisture protection and shock absorbing blocking, suitable for long distance ocean freight and inland transport. Our engineers provide on site assembly guidance, functional commissioning and process tuning support, and the refractory and drive systems are covered by a defined warranty period supported by a responsive after sales team.

To configure the correct machine for your application, please tell us the material and maximum dimensions of your parts, the required output in kilograms per hour, the sintering temperature profile and the protective atmosphere you intend to use. We will confirm the belt width, number of zones, heating power and furnace length, then issue a detailed technical offer, general arrangement drawing and commercial quotation. Minimum order quantity is one unit, payment terms are T/T or L/C, and production lead time is typically 75 to 100 days depending on final configuration. Contact our technical sales team today for a prompt quotation and an application assessment.
