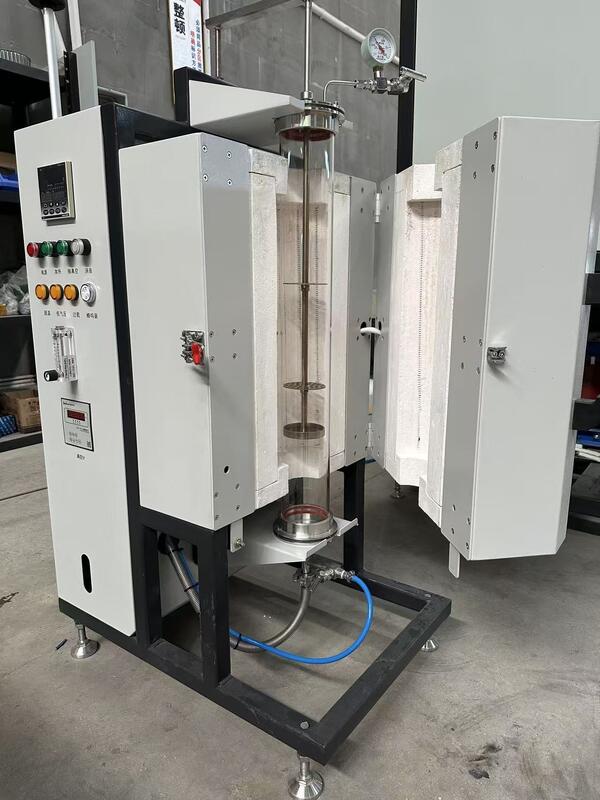

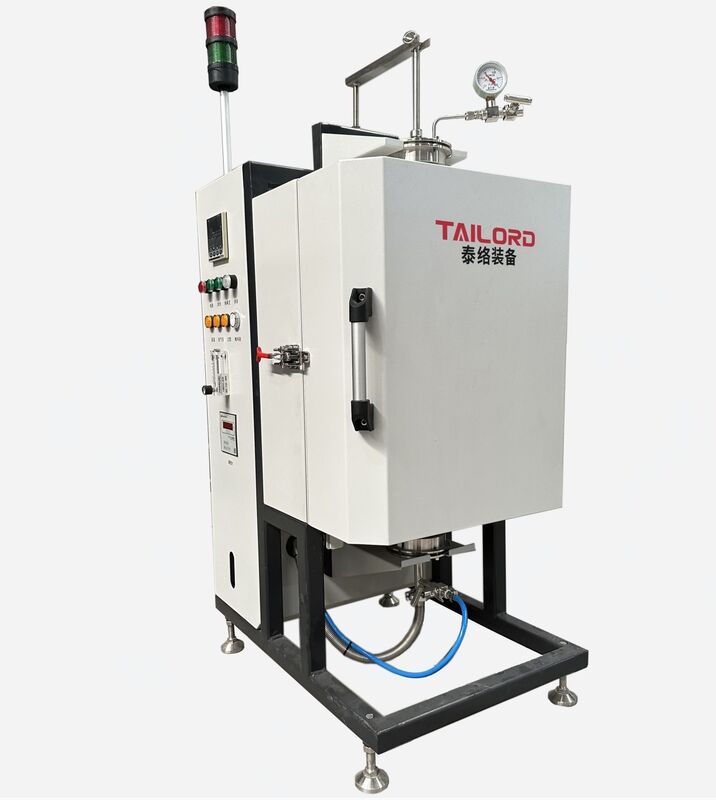

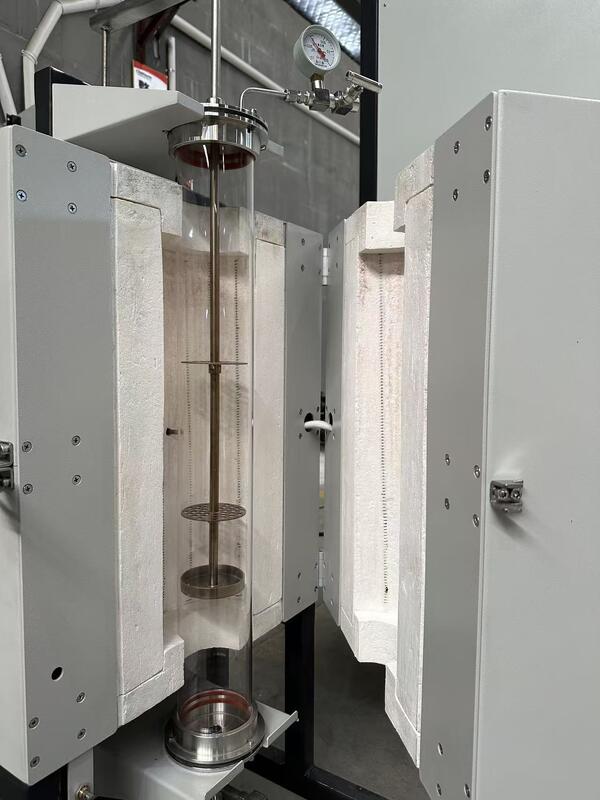

Vacuum Controlled Atmosphere High Temperature Tube Furnace

Technical Specification:

1. Rated Temperature: 450ºC
2. Max. Temperature: 500ºC
3. Tube Dimensions: φ100(OD)mm×φ94(ID)mm×800mm
4. Temp Zone Length: 500mm
5. Chamber Insulation Material: Aluminosilicate Ceramic Fiber
6. Heating Elements: Resistance Coils in Ceramic Fiber Block
7. Thermcouple: Type K
8. Temperature Control Point: 1 Point
9. Temperature Control Precision≤ ±1ºC
10. Temperature Control Mode: Temperature controller imported from Japan with PID
11. Vacuum Level: 10Pa
12. Pump Speed: 100Pa in 2 min
13. Furnace Surface Temperature ≤ RT+35ºC
14. Alarms: Over temp, TC failure, low air pressure etc
15. Total Power: 3kW
16. Insulation Power: 1.5kW
17. Furnace Dimensions: 450×1100×840mm(W×H×D)
18. Weight: about 120kg

    ---



Optional Systems:​

TAILORD – EXPERT IN INDUSTRIAL HEAT TREATMENT FURNACES

Established in 2016, Hefei Tailord Electronic Equipment Co., Ltd. is headquartered in Hefei, Anhui Province, a city renowned for its excellence in science and education. As a modern enterprise specializing in the R&D, sales, design, and manufacturing of industrial furnaces, We have been recognized by government as a high-tech enterprise, a technology-based SME, an innovative SME, and has obtained ISO international quality system certification. We have also been honored with titles such as Class A Taxpayer and Class A Contract and Creditworthy Enterprise. The company holds dozens of utility model patents, invention patents, and copyrights. In the field of industrial furnaces, Tailord has established long-term, stable partnerships with hundreds of leading global enterprises, universities, and research institutions, thanks to its profound technological expertise and leading market share.

FAQ

Q1. Is Tailord a Furnace manufacturer or trading agent?

A: We are a manufacturer specialized in industrial heat treatment furnaces, based in Hefei, China.

Q2. What kind of furnaces do you have?

A: Mesh Belt Furnace, Roller Hearth Furnace, Pusher Furnace, Bell Furnace, Box Furnace, Tube Furnace, Rotary Furnace.

Q3. What about the lead time?

A: 60-90 days for furnace production.

Q4. Do you have any MOQ limit for furnace order?

A: Low MOQ, 1 unit is available.

Q5. How do you ship the goods and how long does it take to arrive?

A:  Normally, Sea shipping, Airline and Train is also optional. Arriving time depends on the distance.

Q5. How to proceed an order for furnace?

A: Firstly, let us know your detailed requirements or application.

Secondly, we offer the technical agreement of the furnace and quote according to your requirements or our suggestions.

Thirdly, customer confirms the contact and places deposit for formal order.

Lastly, we arrange the production.

Q7: Do you offer guarantee for the furnaces?

A: Yes, we offer 1 year warranty after the final acceptance.

Q8: Could offer on-site installation and commission?

A: According to the specific furnace model, we will offer on-line support or on-site service.
