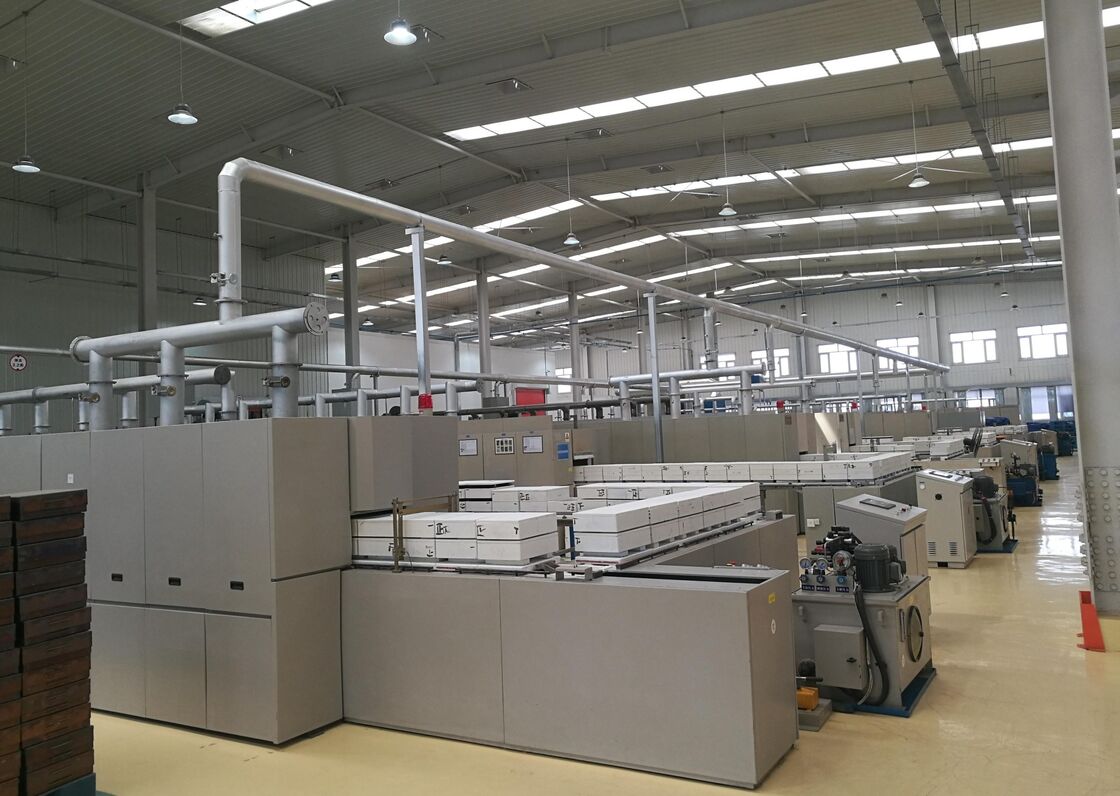

Industrial Continuous Pusher Type Furnace 500-2000mm/H Customized

1. Furnace Model: SLT3039-2617 Pusher Furnace

2. Application:

This equipment is mainly designed for binder burning off and sintering process of Alumina Substrates. And this model runs automatically in a single-train cycle.

3. Main Technical Specification:

3.1 Normal Working Temp.: 1650℃

3.2 Max Temp.: 1700℃

3.3 Dimension: 29000×360×425mm(L×W×H)

3.4 Recommended Pusher Plate: 280×280×40mm(L×W×H)

3.5 Effective Product Height≤ 350mm

3.6 Main Pusher: Hydraulic auto-push, with 10 tonnes of thrust

3.7 Push Speed Range: 500-2000mm/h

3.8 Cooling Method: Natural Cooling + Water Cooling

3.9 Heating Element: Zone 1-10: Resistance Wire Rods Heaters, Zone 11-26: SiC Rods Heaters

3.10 Temperature Zone: 26 Zones

3.11 Temperature Control: 26 Points

3.12 Temp. Control Mode: Temp. Controller with PID

3.13 Heating Speed: ≤5℃/h

3.14 Temp. Uniformity: ± 6℃( sintering stage)

3.15 Atmosphere: Air

3.16 Furnace Surface Temperature ≤ 50℃

3.17 Alarm System : over-temperature, broken thermocouple, overrun and other audible and visual alarm protection

3.18 Maximum Heating Power:500kW

3.19 External Dimensions: 33100×3000×3000mm(L×W×H) (include circular line )

3.20 Status Light Tower: Red/Yellow/Green

3.21 Appearance Color: Light Grey
