Place of Origin:
Hefei, China
Brand Name:
Tailord
Certification:
ISO9001:2015
Model Number:
SLF6305-0302
1. Main Application:

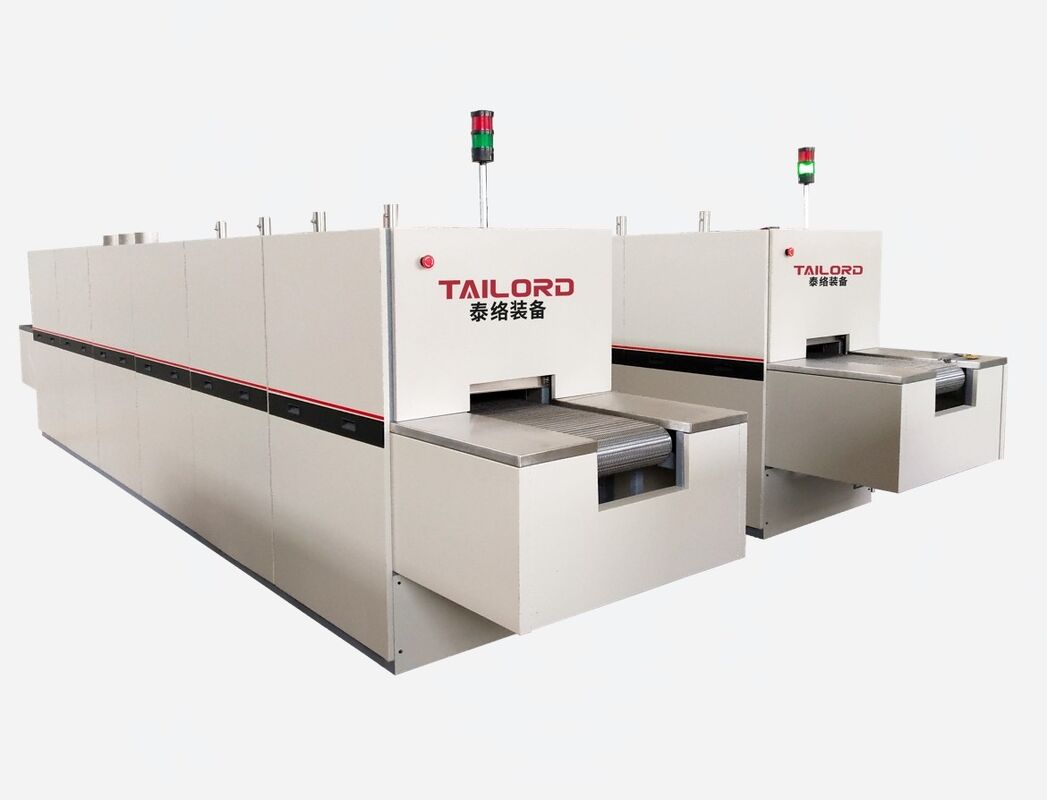

This dryer is designed for binder burn out(BBO) of products like LTCC Sheet.
2. Technical Specification:
2.1. Max Temperature: 250℃,Rated Temperature: 150℃
2.2. The Effective Height of the Product: ≤50mm
2.3. Belt Width: 635mm
2.4. Belt Material: SUS 304
2.5. Max Load on the Belt: 20kg/㎡ (exclude the belt weight)
2.6. Drive System: Big wrap angle friction drive
2.7. Belt Speed: 20-160mm/min, Stepless speed regulation with servo controller
2.8. Heating Method:Alloy Coils,Hot air motor upper heating, horizontal air supply, wind speed adjustable
2.9. Atmosphere: Air
2.10. Exhaust System: exhaust extractor at entrance and exit
2.11. Cooling Mode: Wind Cooling system
2.12. Temperature Control Stability: ±1℃
2.13. Chamber Temperature Uniformity: ±5℃ (constant temperature zone)
2.14. Temperature Zone: 3 Zones
2.15. Temperature Control Point: 3 points (in the center of each zone)
2.16. Heating Rate: ≤10℃/min
2.17. Thermocouple: K-type
2.18. The Temperature of Furnace Surface: ＜Rt+ 35℃
2.19. Heating Power: 9kW
2.20. The Insulation Power of the Empty Furnace: ≤3kW
2.21. Weight: about 400kg
2.22. Overall Dimension: 3200×1100×1350mm (L×W×H)
2.23. Furnace Appearance: outside panel uses high temperature spraying coating and off-white color
